Howo Dump Truck
products > Howo Dump Truck

/data/attachment/202306/05/7556efbd0310f96d3d1070ffea32c26e.jpg

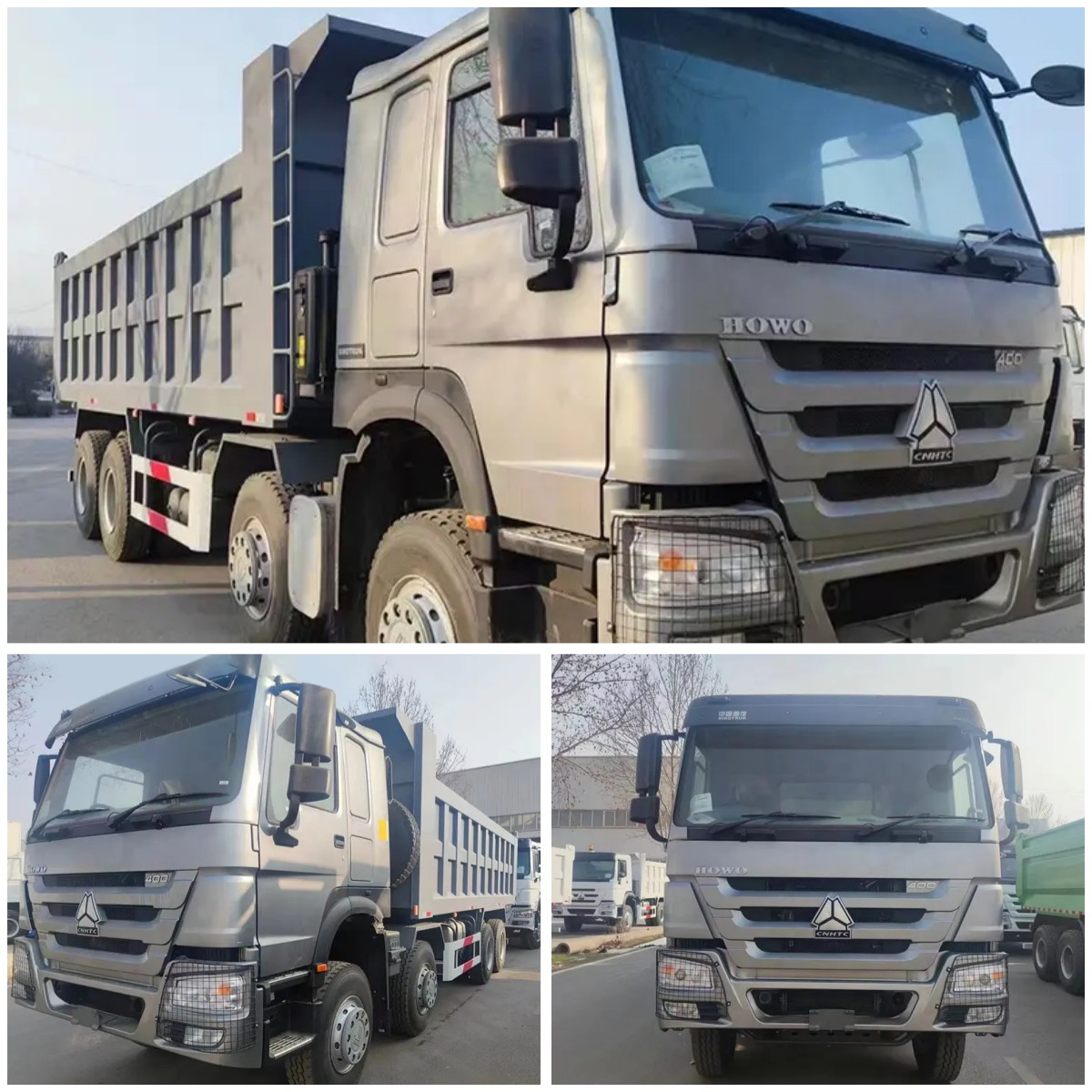

400hp 12 wheels Brand New Sinotruk Howo 8x4 Dump Truck 50tons with best price

Driving Type:8x4 / 12 Wheels / 4 Axles

Horse Power:371HP / 400HP/430HP

Transmission:HW19710, 10F & 2R

Cargo Body Volume:20CBM/25CBM

Inquiry Now

Truck Model			8x4
Truck Brand			SINOTRUCK –HOWO
Dimension(Lx W xH)（unloaded）（mm）			10300x2550x3450 mm
Cargo body size (LWH)			7600 x 2300 x 1500 mm
Cargo body thickness(mm)			bottom:8mm, side:6mm
Lift type of Carriage			Front lifting
Approaching angle/Departure angle（°）			19/23
Overhang(front/rear) (mm)			1500/1870
Wheel base (mm)			3625+1350
Max speed（km/h）			75
Curb weight（kg）			12600
Loading Weight（kg）			25000
Fuel tanker capacity(L)			300 /Optinal
Clutch			Single-plate dry clutch Φ430mm

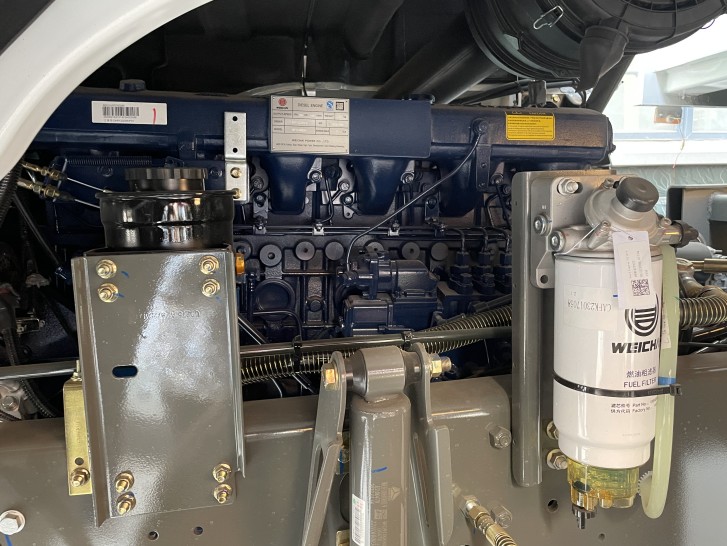

Engine Model (Steyr technology, made in China)	Model		WP12.400E201
	Horse Power		400HP
	Emission		EURO II
	Fuel Type		Diesel
Transmission		Model	HW19710,10 forwards and 2 reverse
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
		Auxiliary brake	Engine exhaust brake
Steering system		Model	hydraulic steering with power assistance Ratio：22.2-26.2
Front axle		VGD95*2
Rear axle		HC16 X2, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg
Color		Optional
Tire		12.00R 20.00 10+1
Cab		HW76
