Driving Type:6*4
Cabin Type：HW76
Horse Power:371HP/375HP
Transmission:HW19712, 10F & 2R
|
Chassis Model |
ZZ4257V3241W |
|
Driving Type |
LHD (RHD is optional) |
|

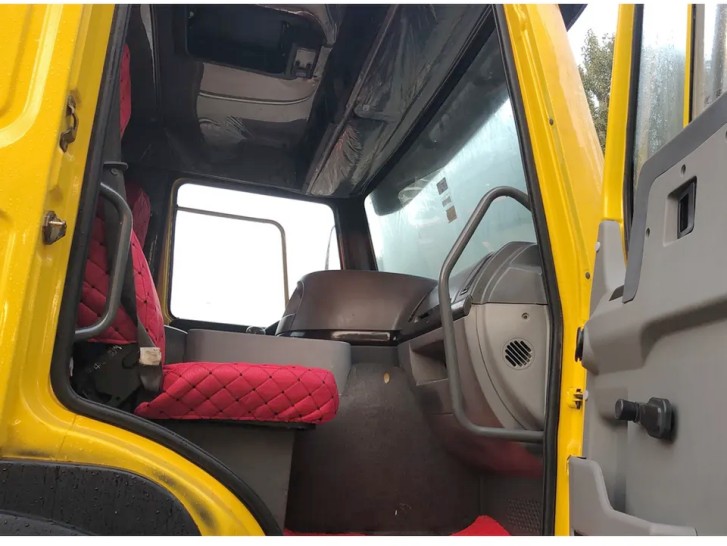

Cabin |

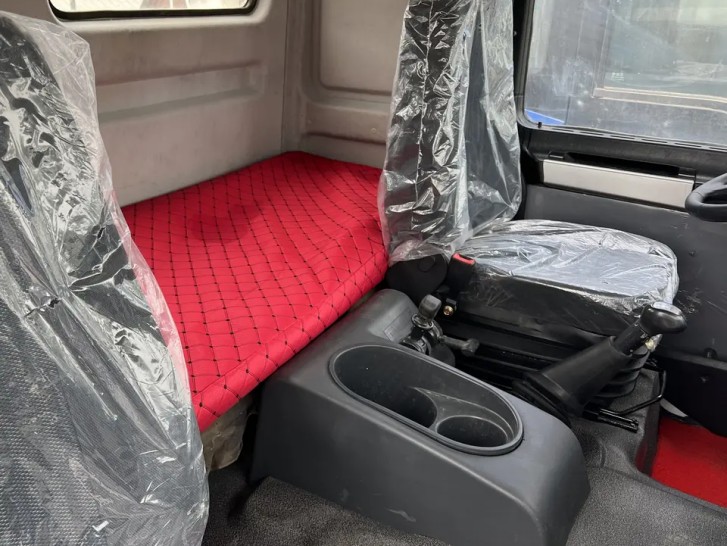

HW76, with one sleeper and two seats, air conditioner |
|
Engin |
Engine model:WD615.47, Euro 2, 371 HP/375HP
6-cylinder
in-line with water cooling, turbo-charging and intercooling
Displacement:
11.596 L
|
|
Transmission |
HW19712, 12F
& 2R
Ratio:14.28,
10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
|
|
Steering |
ZF power steering, modol ZF8118, hydraulic steering with power assitance; |
|
Front Axle |
HF9, 1x9000 KGS Steering with doubleT-cross section beam |
|
Rear Axle |
HC16, 2x16000
KGS
Pressed axle
housing, central single reduction with hub reduction,with differential locks
between wheels and axles.
Ratio:4.42
|
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
Chassis |
Frame:
Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe
all cold riveted cross members
Front
suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action
shock absorbers and stabilizer
Rear
suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
|
|
Brake |
Service brake:
dual circuit compressed air brake
Parking brake
(emergency brake): spring energy, compressed air operating on front shaft and
rear wheels
Auxiliary
brake: engine exhaust brake
|
|
Electrics |
Operating
voltage: 24 V, negative grounded
Starter: 24 V,
5.4 Kw
Alternator:
3-phase, 28 V, 1500 W
Batteries: 2 x
12 V, 165 Ah
Cigar-lighter,
horn, headlamps, fog lights, brake lights, indicators and reverse light
|
|
Tyres |
315/80R22.5 |
|
Fuel Tank |
400L |
|

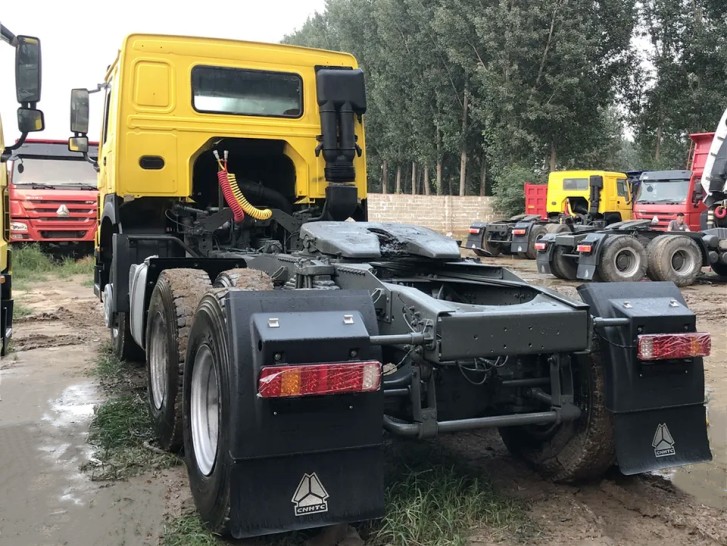

Fifth Wheel |
90# |
