Driving Type8x4 / 12 Wheels / 4 Axles
Horse Power371HP /375HP
TransmissionHW19710, 10F & 2R
Cargo Body Volume20CBM/25CBM
| Truck Model | 8 x 4 | ||
| Truck Brand | SINOTRUCK –HOWO | ||
| Dimension(Lx W xH)（unloaded）（mm） | 10300 x 2550 x 3450 mm | ||
| Cargo body size (L*W*H) | 7600 x 2300 x 1500 mm | ||
| Cargo body thickness(mm) | bottom: 8 mm, side: 6 mm | ||
| Lift type of Carriage | Front lifting | ||
| Approaching angle/Departure angle（°） | 19 / 23 | ||
| Overhang(front/rear) (mm) | 1500 / 1870 | ||
| Wheel base (mm) | 3625 + 1350 | ||
| Max speed（km/h） | 75 | ||
| Curb weight（kg） | 12600 | ||
| Loading Weight（kg） | 25000 | ||
| Fuel tanker capacity(L) | 300 /Optinal | ||
| Clutch | Single-plate dry clutch Φ430mm | ||
| Engine Model | Model | WD615.47 | |
| (Steyr technology, made in China) | Horse Power | 371HP / 375HP | |
| Emission | EURO II | ||
| Fuel Type | Diesel | ||
| Transmission | Model | HW19710, 10 forwards and 2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake | Engine exhaust brake | ||
| Steering system | Model | hydraulic steering with power assistance | |
| Ratio：22.2 - 26.2 | |||
| Front axle | HF9 * 2 | ||

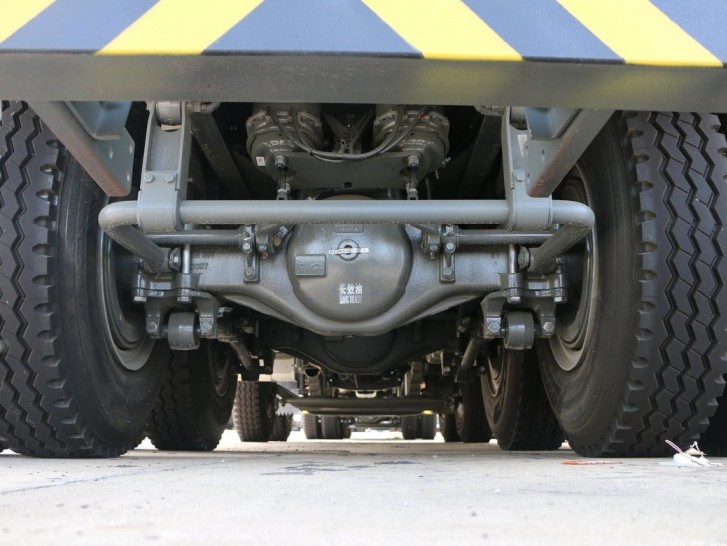

| Rear axle | HC16 X 2, Pressed axle housing, central double reduction with differential locks between axles and wheels | ||
| Loading capacity: 16000kg | |||
| Color | Optional | ||
| Tire | 315 / 80R22.5 | ||
| Cab | HW76 | ||
