Brand :SINOTRUK
Brand :Brand New
Tire:295/80R22.5 12R22.5 tubeless tire 10+1
Tank capacity(ton) :10m³/Customized definition
| Brand | SINOTRUK |

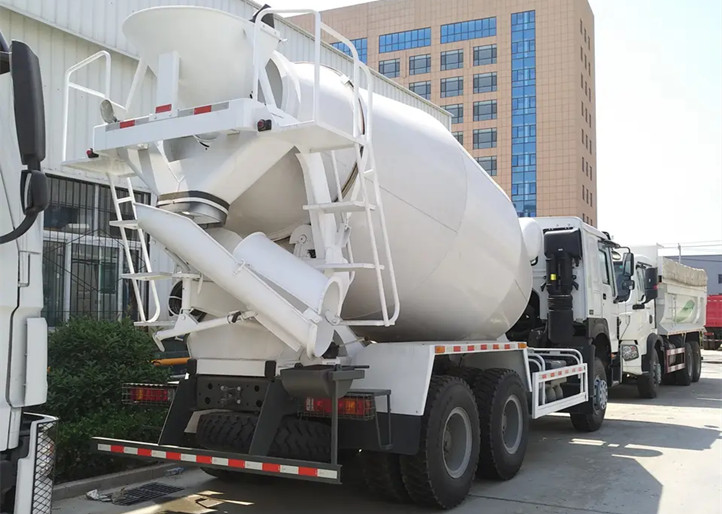

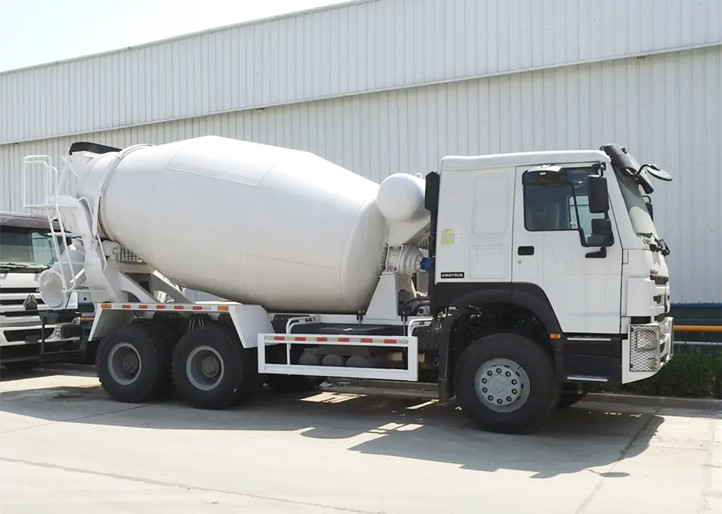

| Product name | HOWO Mixer truck 10m3 |
| Truck model | ZZ5257GJBN3847W |
| Engine model | WD615.47, 371hp,euro 2 |
| Driving Position | Left/Right |
| Type | Water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
| Total Weight | 25,000kg |
| Curb Weight | 10580 |
| Max speed(km/h) | 78 |
| Front/ Rear axle | HF9 / HC16 |
| Gear Box | HW19710,10 forwards and 2 reverse |
| Dimension(Lx W xH)(unloaded)(mm) | 9040 x 2496 x 3980 |
| Overhang(front/rear) (mm) | 1500 / 2365 |
| Wheel base (mm) | 3825 + 1350 |
| Tyres | 12.00R20 / Tubeless tire 10 + 1 |
| Drum rotation speed | 0-14 r/min |
| Feeding Speed | >3.5 m3/min |
| Water Tank Volume | 400 L |
| Discharge Remain Ratio | <0.2% |
| Water supply | Pressing type |
