Condition：Brand New
Brand：Sinotruk
Tank capacity(ton) :Optional
Color：Optional

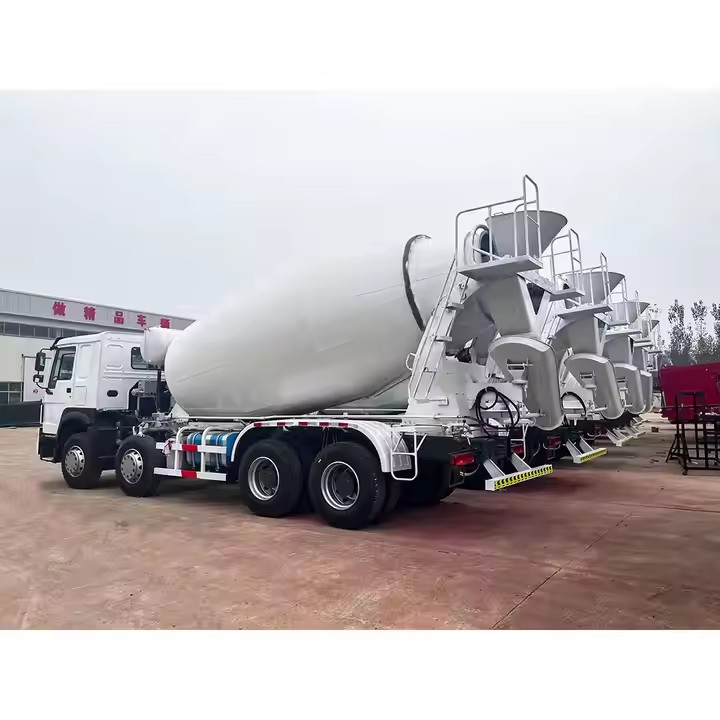

| Howo 8 x 4 concrete mixer trucks price | ||||||||
| Model | UNIT | 3 m³ | 6 m³ | 8 m³ | 9 m³ | 10 m³ | 12 m³ | 14 m³ |
| Mixer Type | / | Dry/Wet | ||||||
| Geometric Volume of Drum | m³ | 4.45 | 9.6 | 11.8 | 14.4 | 14.4 | 18.4 | 20.4 |
| Material of Drum&Blades | / | Q345 | ||||||
| Inclination Angle for Drum | / | 16 | 15 | 16 | 13 | 13.5 | 12 | 12 |
| Padding Rate | % | 67.4 | 63.8 | 67.8 | 62.5 | 69.4 | 65.2 | 68.6 |
| Residual Rate | % | <0.2 | ||||||
| Charging Speed | m³/min | ≧3 | ||||||
| Discharging Speed | m³/min | >1 | ||||||
| Mixing Speed | r/min | 0 - 14 | 2--14 | |||||
| Hydraulic Pump | / | Interpump | Rexroth | |||||
| Hydraulic Motor | / | Interpump | Rexroth | |||||
| Reducer | / | Lead374 | ZFP4300 | ZFP5300 | ||||
| Radiator | / | KT18 | ||||||
| Capacity for Water Tank | L | 240 | 350 | 450 | ||||
| Water Supply | / | Air/Elecrtical Pump | ||||||
| Slump Range | mm | 50 - 210 | ||||||
| Water Supply Pressure | Mpa | 0.2 | 0.3 | |||||
| Overall Dimension(L*W*H) | mm | 3968 * 1920 * 2065 | 5414 * 2400 * 2446 | 5800 * 2500 * 2816 | 6640 * 2495 * 2652 | 6190*2600*2696 | 7500 * 2600 * 2870 | 8000 * 2450 * 2906 |
