Vehicle Model

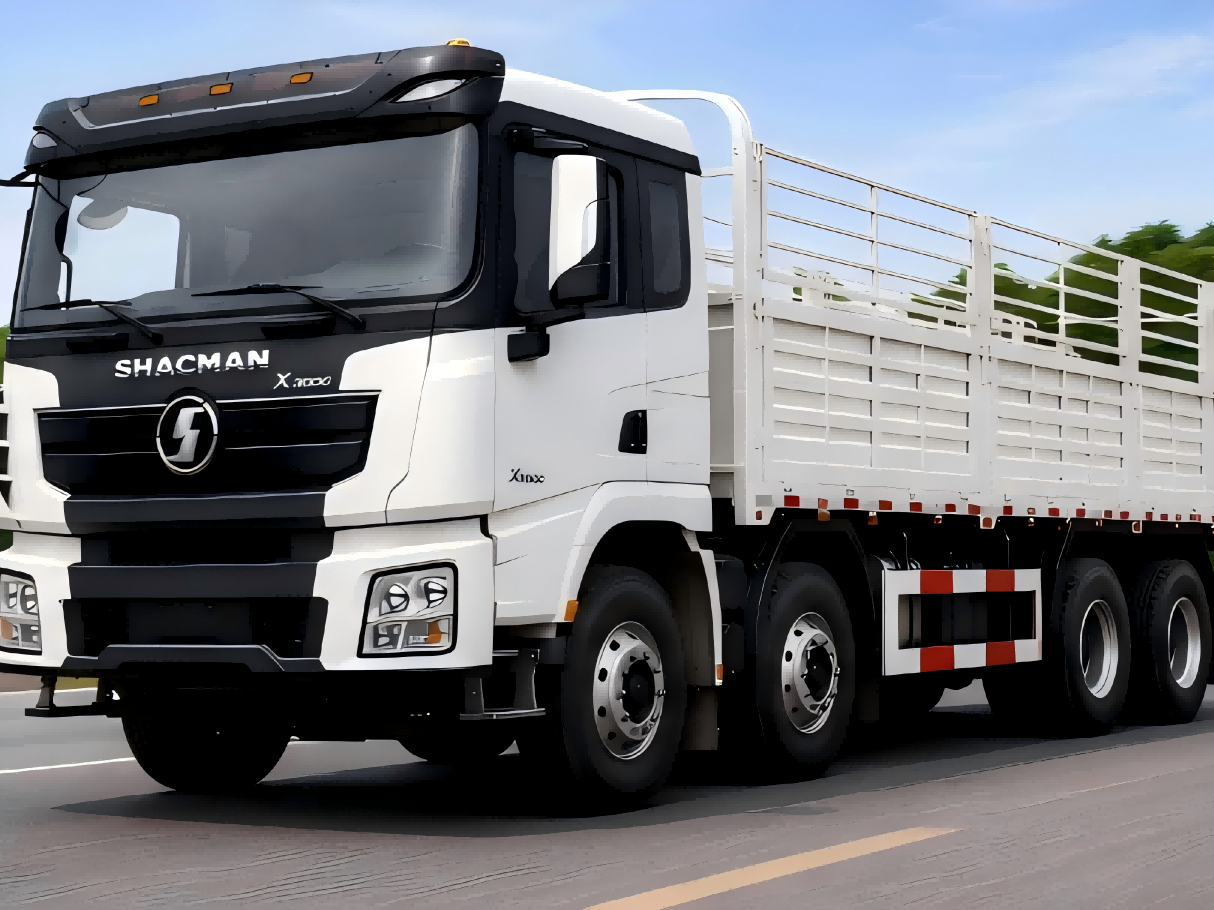

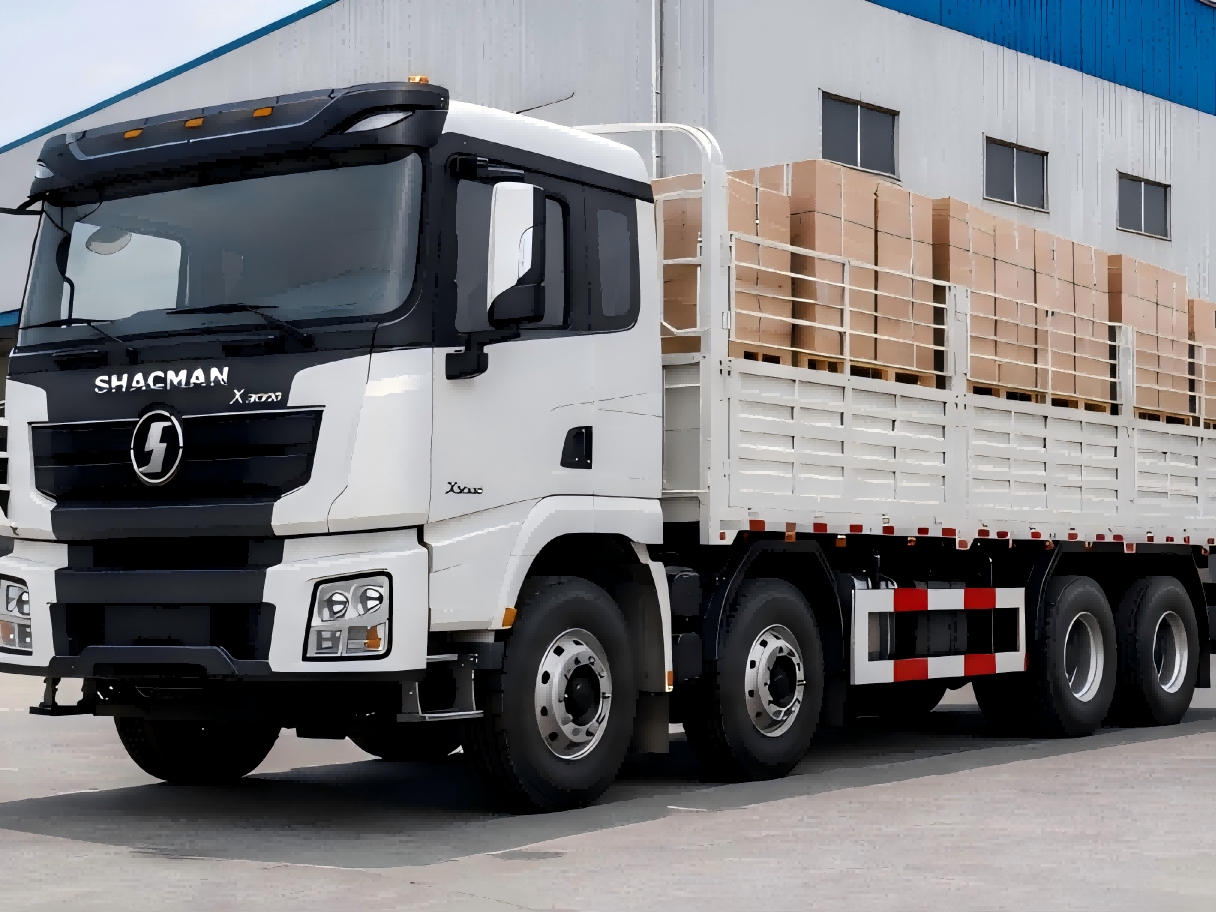

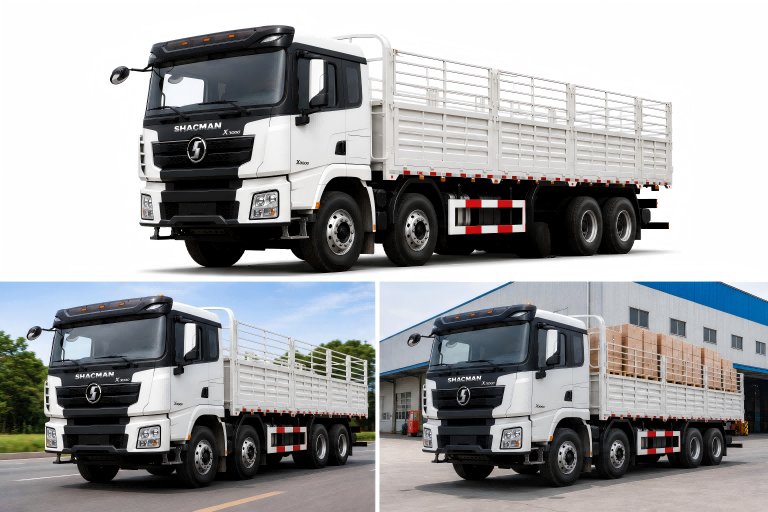

SHACMAN X3000 8×4 Lorry Truck
Vehicle Type
Cargo Truck / Lorry Truck
Cabin
X3000 High Roof Cabin With Sleeper
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP13.550E501
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSDX240TA
Gearbox
12 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Front Axle
9.5T MAN Axle ×2
Rear Axle
16T MAN Double Reduction Axle ×2
Axle Ratio
4.769 / 5.262 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
12 + 1 Spare Tire
Wheelbase
1800 + 4575 + 1400 mm
Overall Dimension
11900 × 2550 × 3650 mm
Cargo Body Length
9600 mm
Cargo Body Height
2400 mm
Cargo Body Material
High-strength Steel
Side Wall Type
Fence Type / Stake Type
Payload Capacity
50–60 Tons
Minimum Turning Radius
12 m
Application
Long-distance Logistics / Industrial Cargo / Agricultural Transport / Heavy-duty Freight
Optional Configuration
Customized Configuration Supported
