Vehicle Model

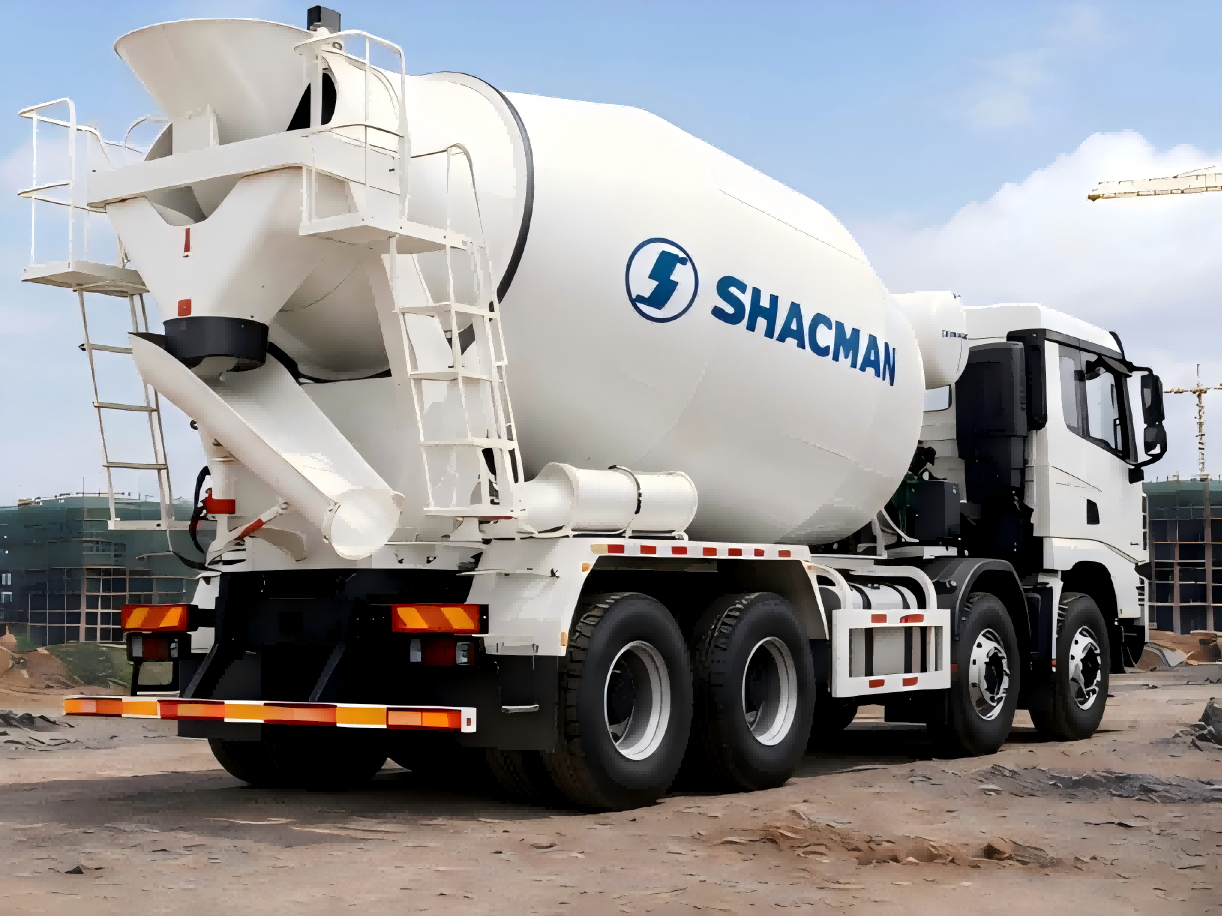

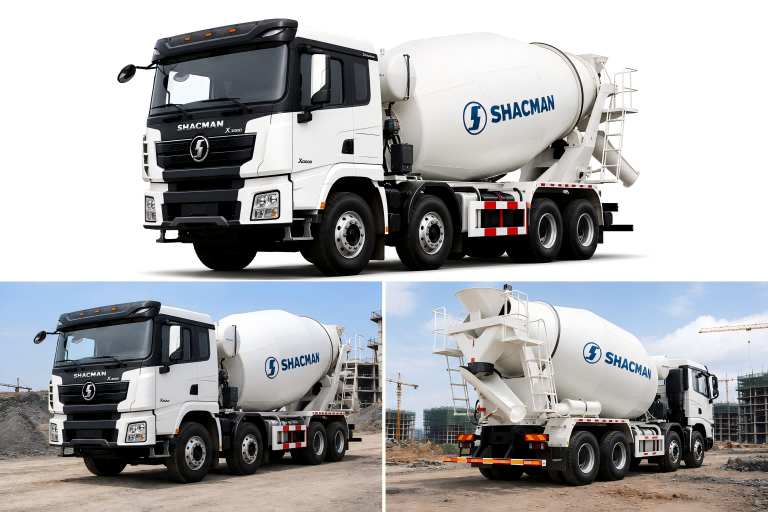

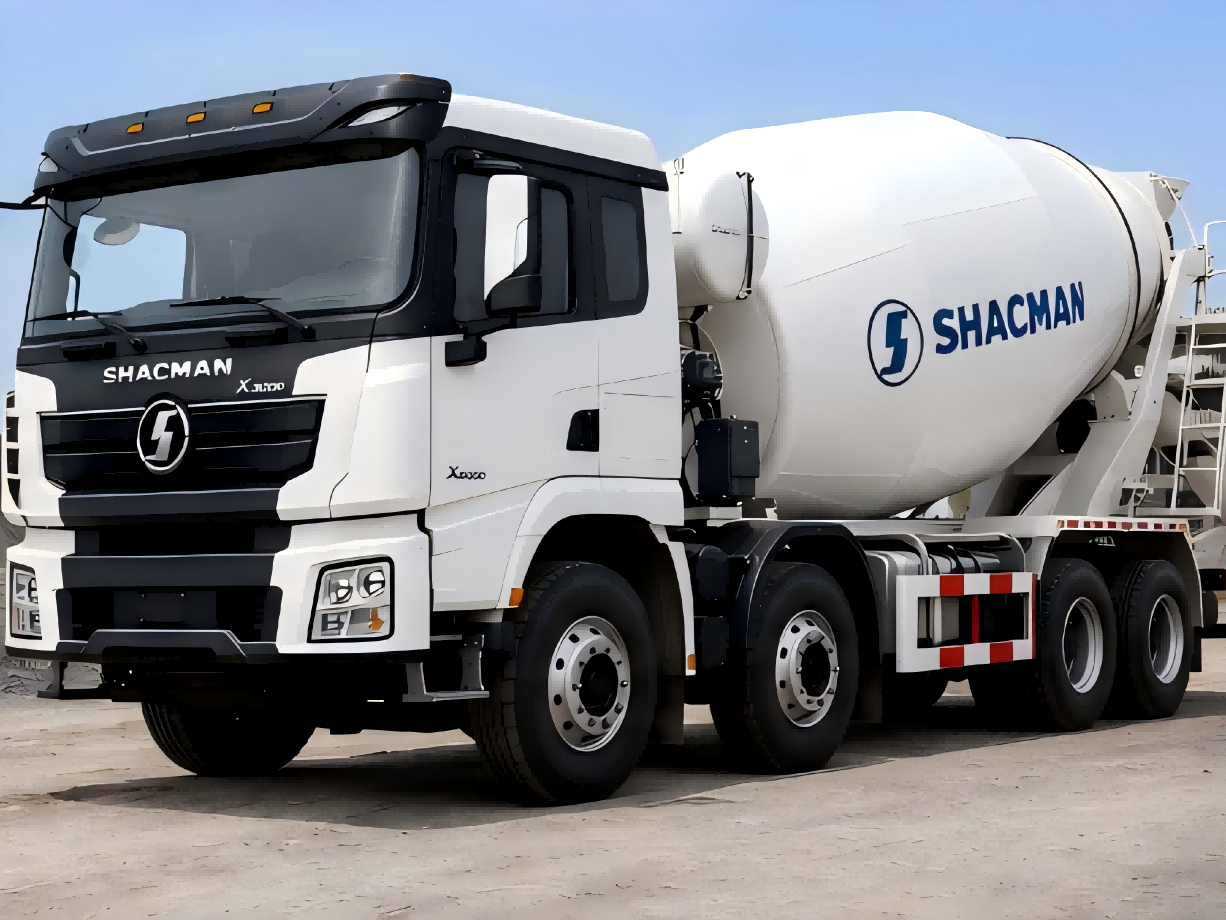

SHACMAN X3000 Cement Mixer Truck
Vehicle Type
Concrete Mixer Truck
Cabin
X3000 High Roof Cabin With Sleeper
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP12.430E201
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSD200T
Gearbox
12 Forward & 2 Reverse
Front Axle
9.5T MAN Axle ×2
Rear Axle
16T MAN Double Reduction Axle ×2
Axle Ratio
5.262 / 5.92 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
12 + 1 Spare Tire
Wheelbase
1800 + 3175 + 1400 mm
Overall Dimension
10200 × 2550 × 3980 mm
Mixer Drum Capacity
10–14 m³
Mixer Drum Material
Wear-resistant High-strength Steel
Hydraulic Pump Brand
PMP / Eaton / Rexroth
Hydraulic Motor Brand
PMP / Rexroth
Reducer Brand
Bonfiglioli / PMP
Water Tank Capacity
400 L
Drum Rotation Speed
0–14 rpm
Discharging Speed
≥2 m³/min
Payload Capacity
25–30 Tons
Application
Construction Site / Infrastructure Project / Concrete Transportation
Optional Configuration
Customized Configuration Supported
