Vehicle Model

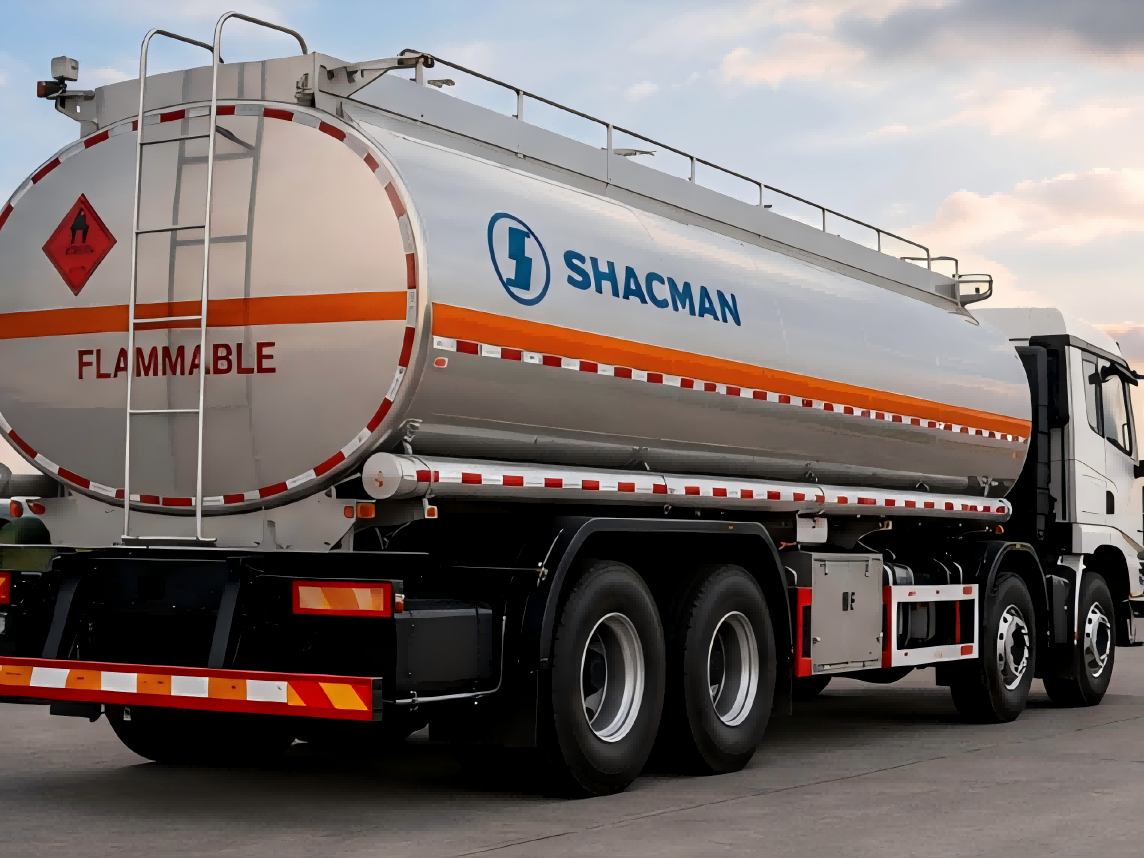

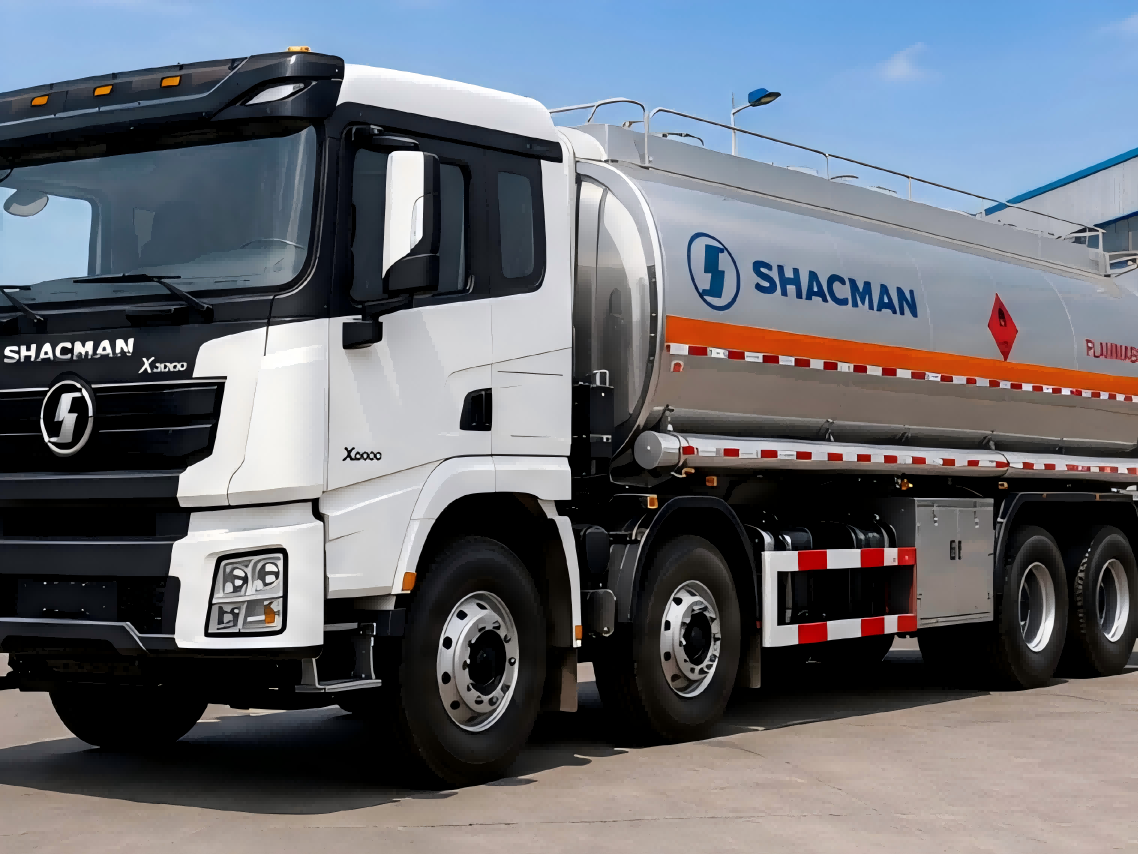

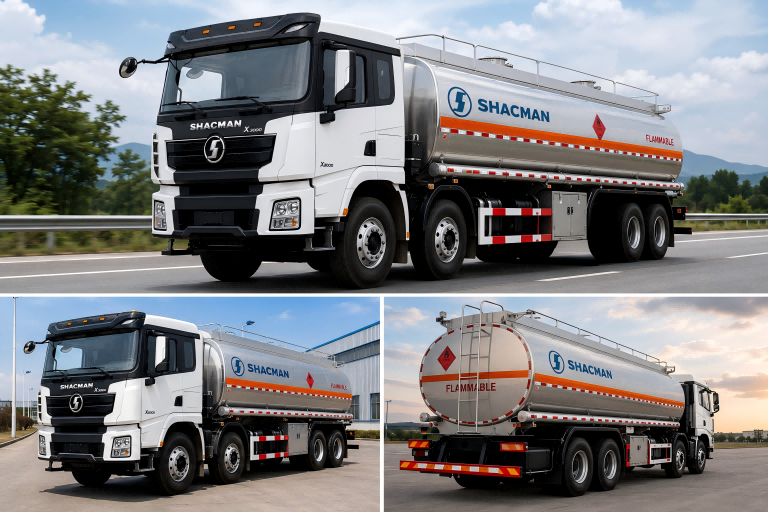

SHACMAN X3000 Oil Tanker Truck
Vehicle Type
Fuel Tank Truck / Oil Tanker Truck
Drive Type
6×4 / 8×4 Optional
Cabin
X3000 High Roof Cabin With Sleeper
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP12.430E201
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSD200T
Gearbox
12 Forward & 2 Reverse
Rear Axle
16T MAN Double Reduction Axle
Axle Ratio
4.769 / 5.262 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
11200 × 2550 × 3650 mm
Tank Capacity
20000–35000 Liters
Tank Material
Carbon Steel / Aluminum Alloy / Stainless Steel
Compartment Quantity
1–6 Compartments Optional
Baffle Plate
Anti-wave Internal Baffle
Manhole Cover
European Standard Explosion-proof Manhole
Bottom Valve
Pneumatic Emergency Shut-off Valve
Discharge Valve
API Standard Valve
Oil Pump
Self-priming Gear Pump
Loading System
Top Loading / Bottom Loading
Static Wire Reel
Equipped
Fire Extinguisher
2 Units Equipped
Ladder & Walkway
Anti-slip Design
Payload Capacity
20–30 Tons
Transport Medium
Diesel / Petrol / Crude Oil / Lubricant
Application
Fuel Transportation / Oil Delivery / Petroleum Logistics
Optional Configuration
Customized Configuration Supported
