Vehicle Model

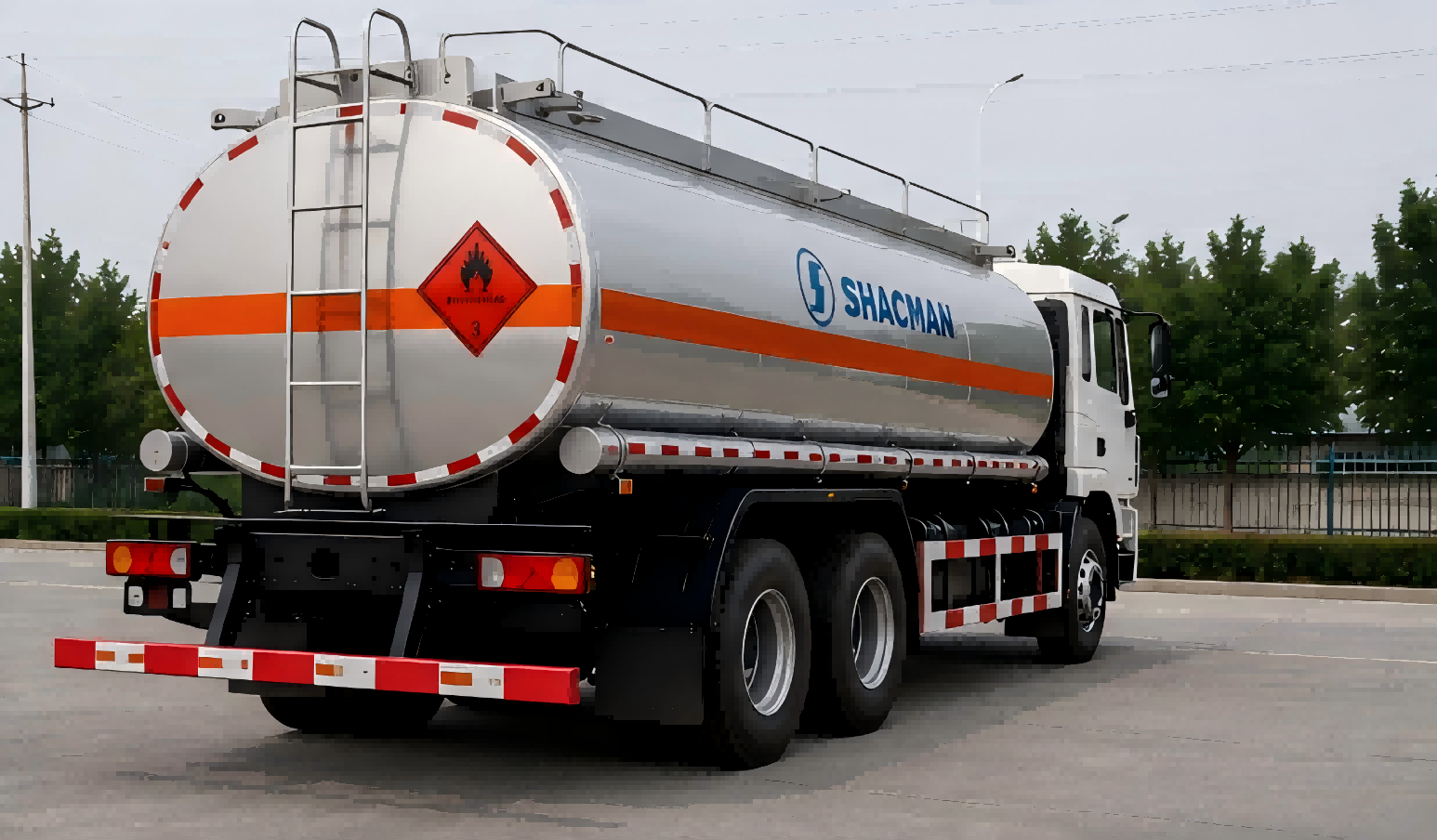

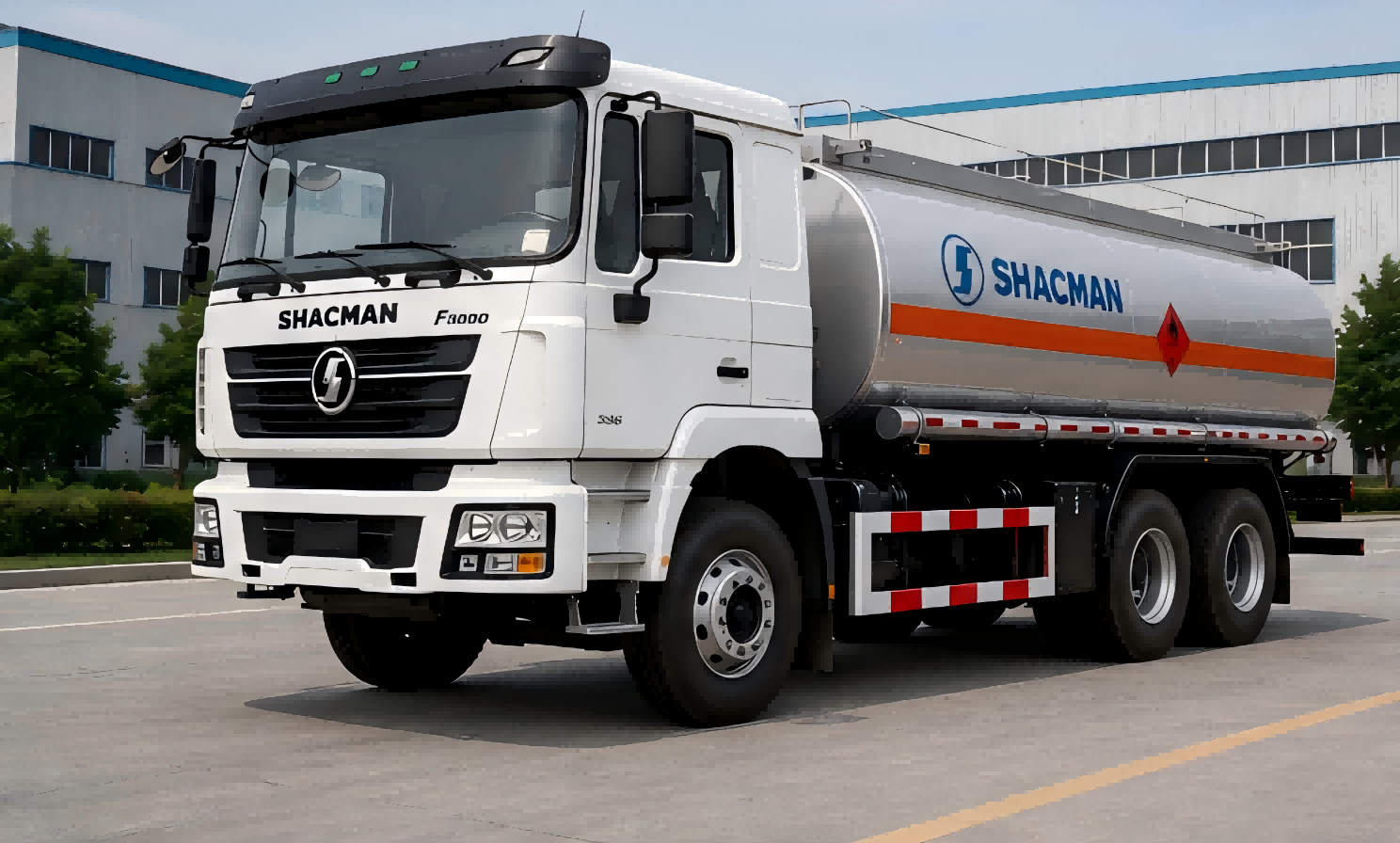

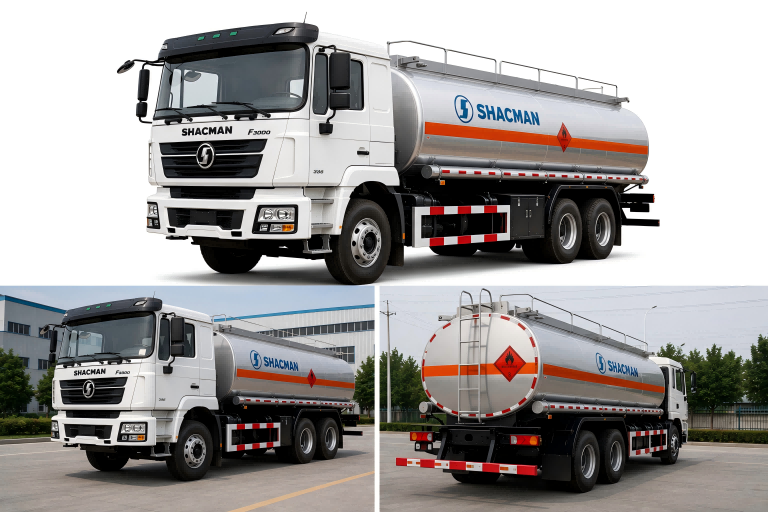

SHACMAN F3000 6×4 Tanker Truck
Vehicle Type
Fuel Tank Truck / Oil Tanker Truck
Cabin
F3000 Flat Roof / High Roof Cabin
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Adjustable Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP10.380E22 / WP12.380E201
Emission Standard
Euro II / Euro III / Euro IV
Displacement
9.726 L / 11.596 L
Maximum Torque
1600–1800 N·m
Transmission Model
10JSD180 / 12JSD180
Gearbox
10 Forward & 2 Reverse
Rear Axle
13T MAN Double Reduction Axle
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 12R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
10800 × 2500 × 3550 mm
Tank Capacity
18000–25000 Liters
Tank Material
Carbon Steel / Aluminum Alloy
Compartment Quantity
1–4 Compartments Optional
Baffle Plate
Anti-wave Internal Baffle
Manhole Cover
Explosion-proof Manhole
Bottom Valve
Emergency Shut-off Valve
Oil Pump
Self-priming Gear Pump
Loading System
Top Loading / Bottom Loading
Static Wire Reel
Equipped
Fire Extinguisher
2 Units Equipped
Ladder & Walkway
Anti-slip Design
Payload Capacity
20–25 Tons
Transport Medium
Diesel / Petrol / Lubricant Oil
Application
Fuel Transportation / Oil Delivery / Petroleum Logistics
Optional Configuration
Customized Configuration Supported
