Vehicle Model

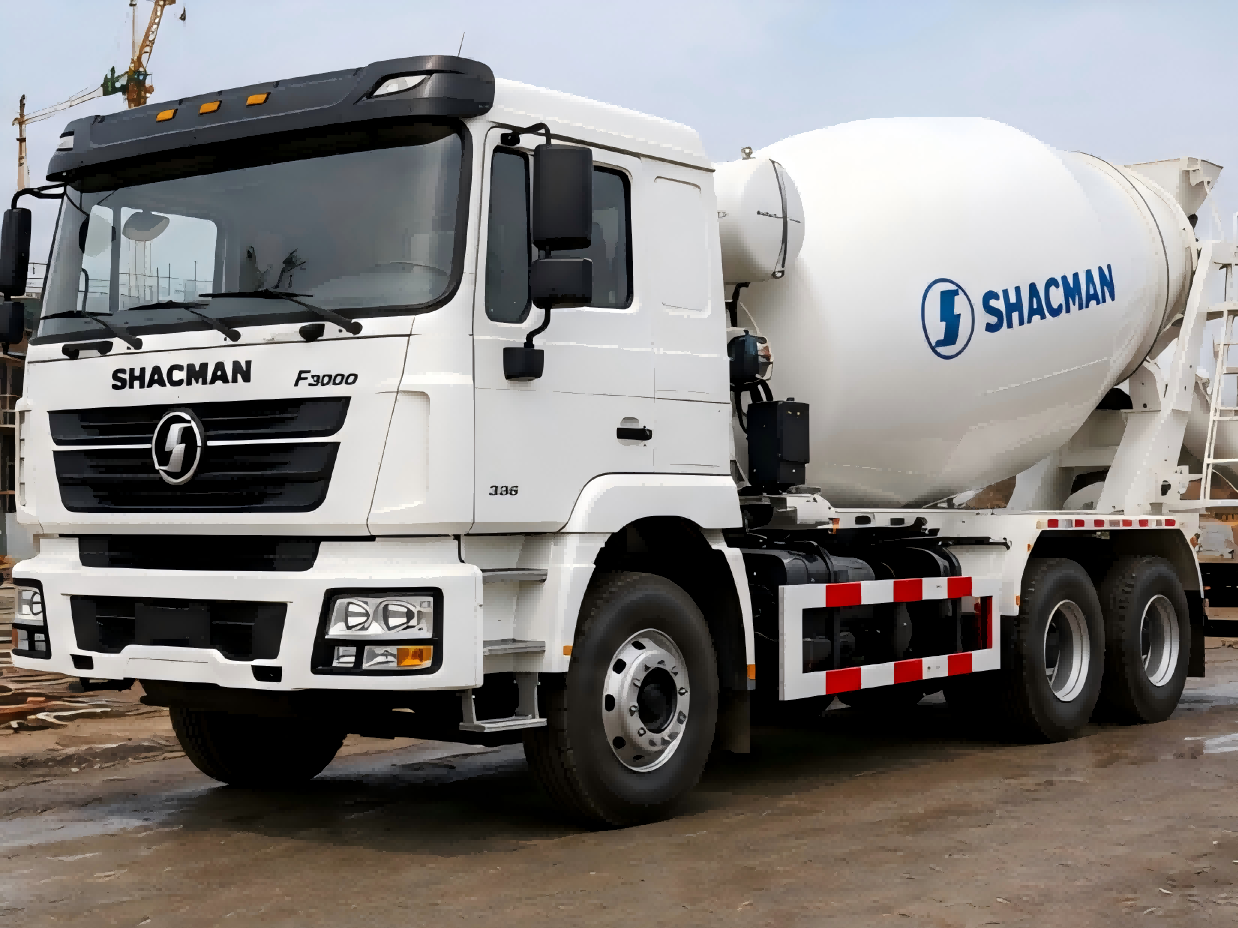

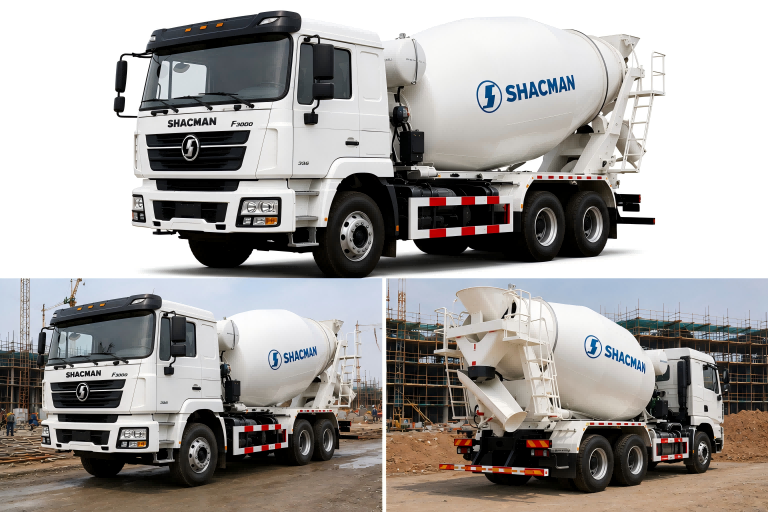

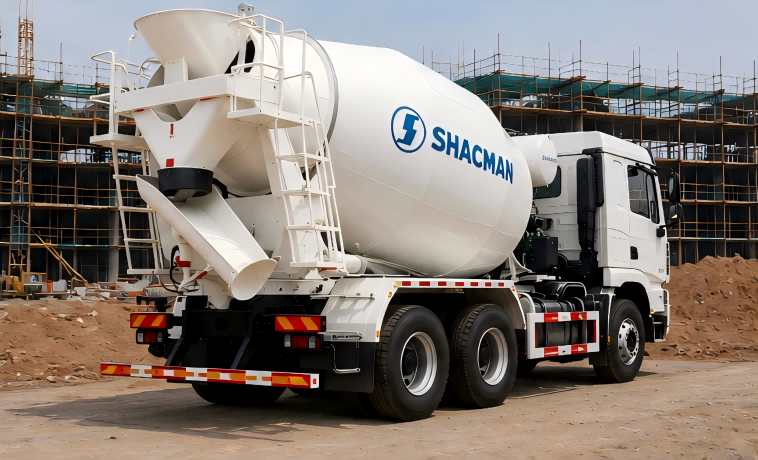

SHACMAN F3000 6×4 Cement Mixer Truck
Vehicle Type
Concrete Mixer Truck
Cabin
F3000 Flat Roof / High Roof Cabin
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Adjustable Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP10.380E22 / WP12.380E201
Emission Standard
Euro II / Euro III / Euro IV
Displacement
9.726 L / 11.596 L
Maximum Torque
1600–1800 N·m
Transmission Model
10JSD180 / 12JSD180
Gearbox
10 Forward & 2 Reverse
Rear Axle
13T MAN Double Reduction Axle
Axle Ratio
5.262 / 5.92 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 12R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
9200 × 2500 × 3950 mm
Mixer Drum Capacity
8–12 m³
Mixer Drum Material
Wear-resistant High-strength Steel
Hydraulic Pump Brand
PMP / Eaton / Rexroth
Hydraulic Motor Brand
PMP / Rexroth
Reducer Brand
Bonfiglioli / PMP
Water Tank Capacity
350 L
Drum Rotation Speed
0–14 rpm
Discharging Speed
≥2 m³/min
Payload Capacity
12–15 Tons
Application
Construction Site / Infrastructure Project / Concrete Transportation
Optional Configuration
Customized Configuration Supported
