Vehicle Model

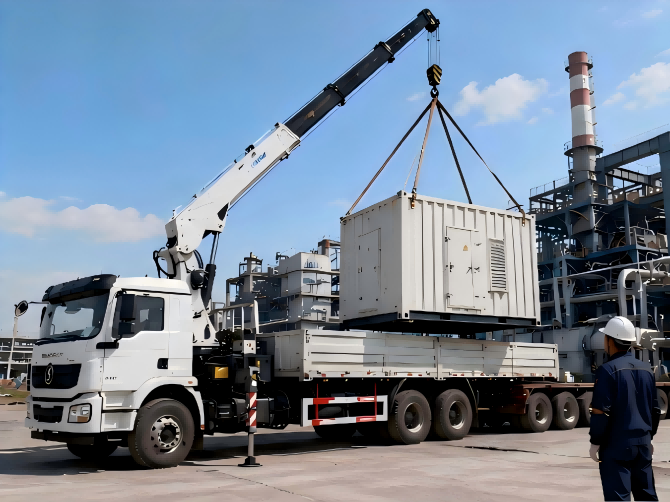

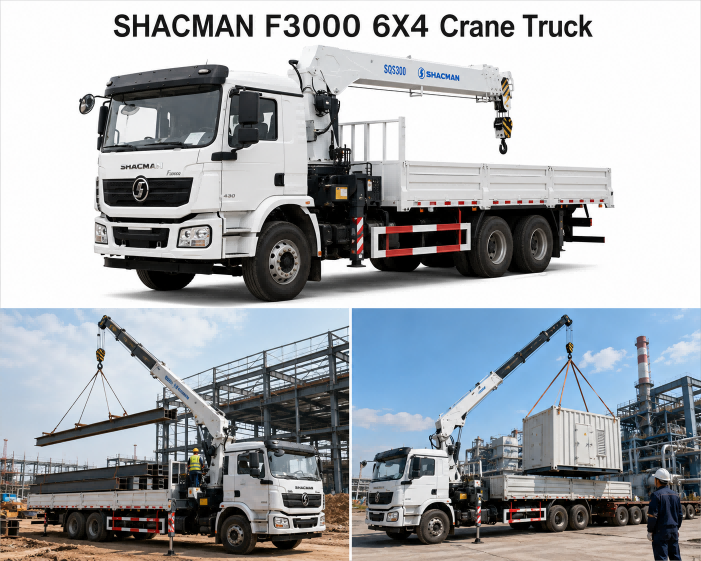

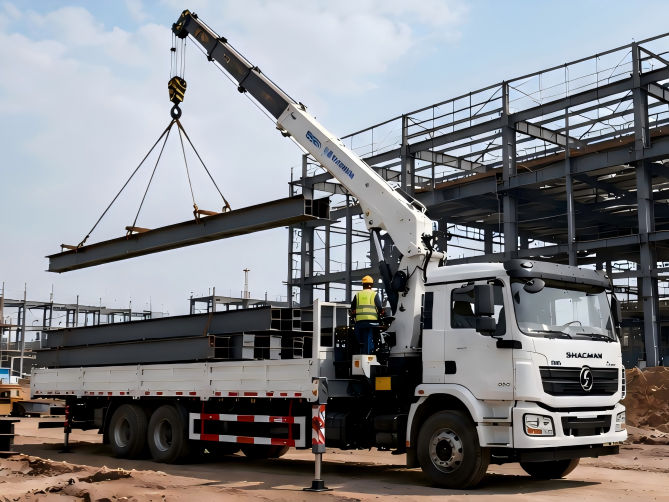

SHACMAN F3000 6×4 Crane Truck
Vehicle Type
Truck Mounted Crane
Cabin
F3000 Flat Roof / High Roof Cabin
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP10 / WP12 / WP13 Series
Horsepower
340 HP / 380 HP / 430 HP
Emission Standard
Euro II / Euro III / Euro V
Displacement
9.7 L – 12.5 L
Maximum Torque
1500–2100 N·m
Fuel Tank Capacity
300 L / 400 L
Transmission Model
10JSD / 12JSD Series
Gearbox
10 Forward & 2 Reverse / 12 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Rear Axle
16T MAN Double Reduction Axle ×2
Axle Ratio
5.262 / 5.92 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
10500 × 2550 × 3950 mm
Crane Brand
XCMG / SANY / PALFINGER Optional
Crane Type
Straight Boom Crane / Knuckle Boom Crane
Crane Mounting Position
Behind Cabin
Rated Lifting Capacity
8–16 Tons
Maximum Lifting Moment
200–400 kN·m
Maximum Working Radius
15–22 m
Maximum Lifting Height
17–25 m
Boom Sections
4–6 Sections
Boom Material
High-strength Structural Steel
Rotation Angle
360° Continuous Rotation
Winch Type
Hydraulic Winch
Hydraulic System
Full Hydraulic Control
Hydraulic Pump Brand
Imported Hydraulic Pump
Hydraulic Oil Tank Capacity
180–250 L
Outrigger Type
H-type Hydraulic Outriggers
Outrigger Span
5500–6500 mm
Cargo Body Length
6200–8500 mm
Cargo Body Height
600–800 mm
Cargo Body Material
High-strength Steel
Payload Capacity
15–25 Tons
Application
Construction Site, Port, Logistics, Mining, Industrial Project
Remote Control
Optional Wireless Remote Control
Safety Device
Overload Protection System
Optional Configuration
Customized Configuration Supported
