Vehicle Model

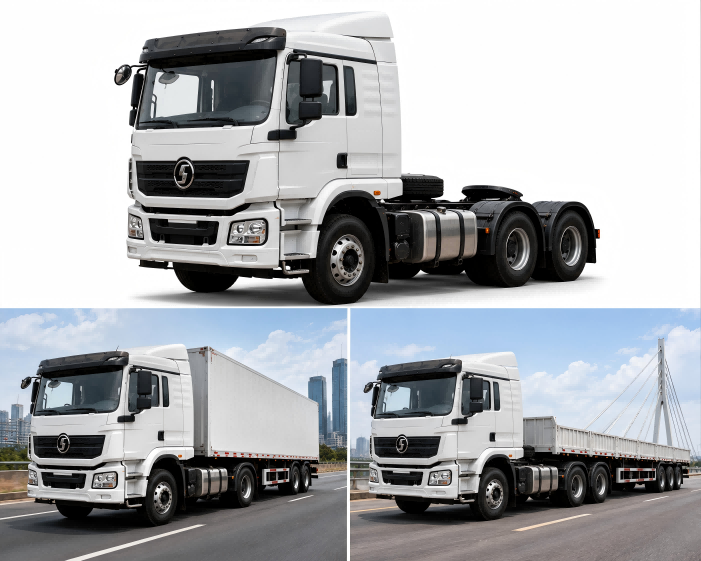

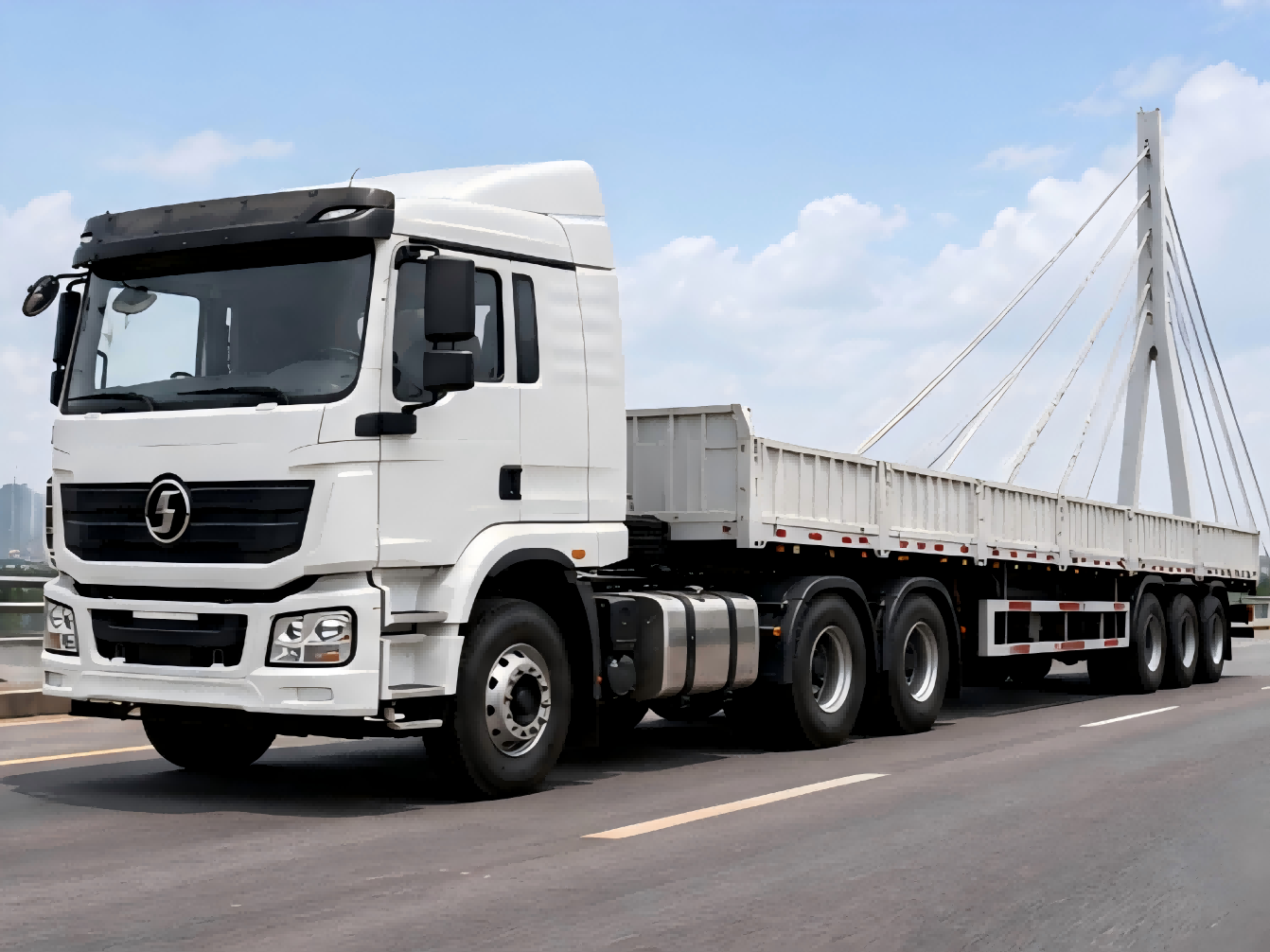

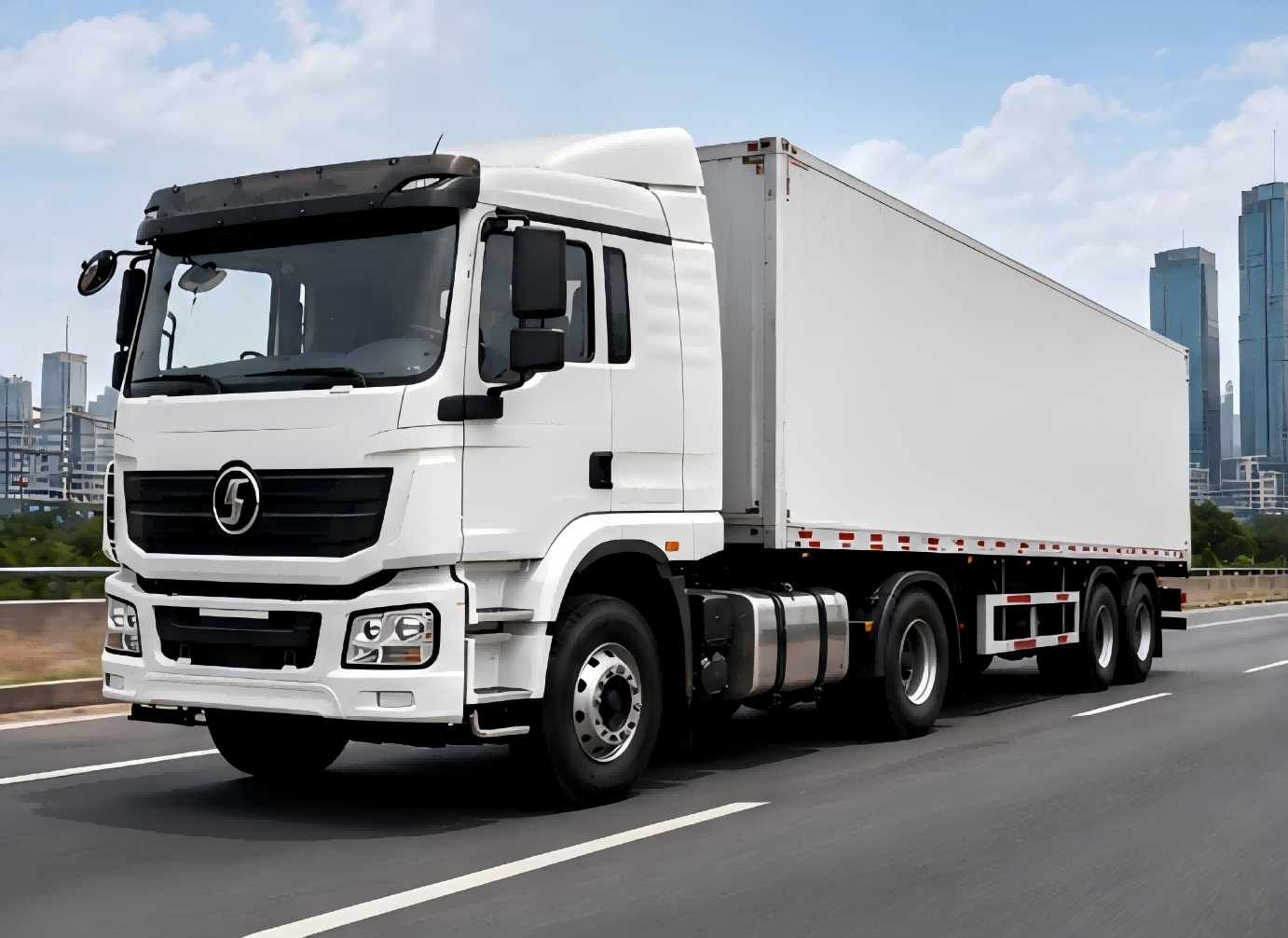

SHACMAN H3000 6×4 Trailer Truck
Vehicle Type
Trailer Truck / Tractor Head
Cabin Model
H3000 High Roof Cabin
Seat Configuration
2 Seats + 1 Sleeper
Multifunction Steering Wheel
Optional
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP12 / WP13 Series
Horsepower
430 HP / 460 HP / 480 HP / 500 HP
Emission Standard
Euro II / Euro III / Euro V / Euro VI
Displacement
11.6L – 12.54L
Maximum Torque
2100–2400 N·m
Fuel Tank Capacity
400L / 600L / 800L
Transmission Model
12JSDX / 16JSD Series
Gearbox
12 Forward & 2 Reverse / 16 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Rear Axle
13T / 16T MAN Reduction Axle ×2
Axle Ratio
3.7 / 4.11 / 4.77
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Frame
High-strength Double-layer Frame
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
6800 × 2550 × 3950 mm
Fifth Wheel Size
50# / 90#
Fifth Wheel Brand
JOST Optional
Kingpin Compatibility
2 Inch / 3.5 Inch
Application
Container Transport, Logistics, Long-distance Freight, Bulk Cargo Transport
Optional Configuration
Customized Configuration Supported
