Vehicle Model

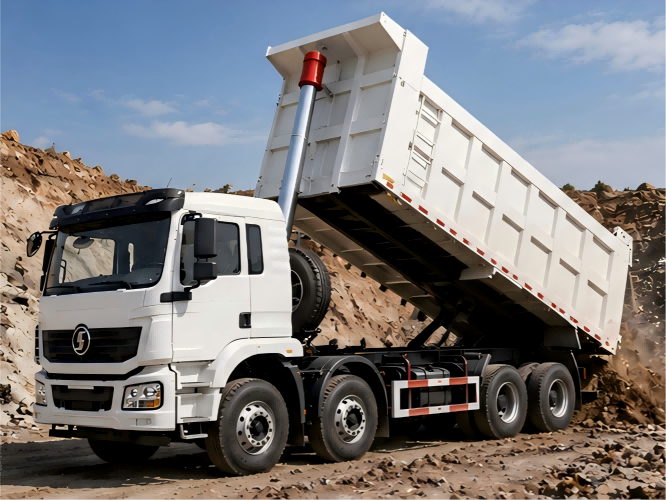

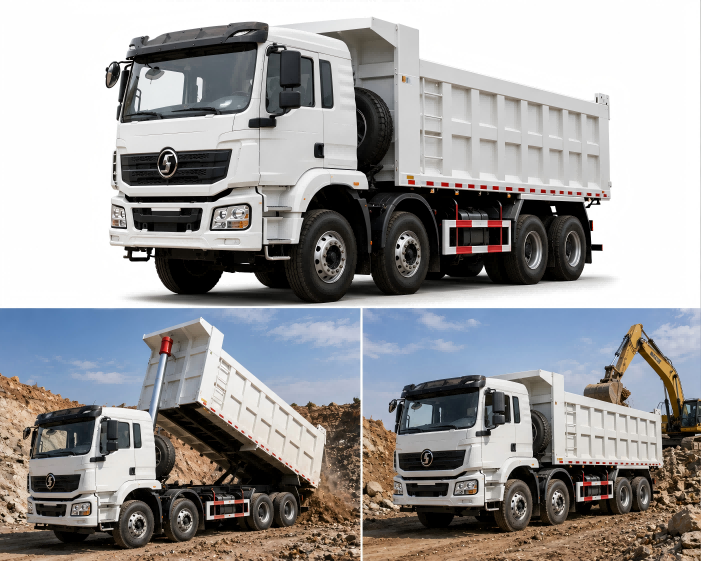

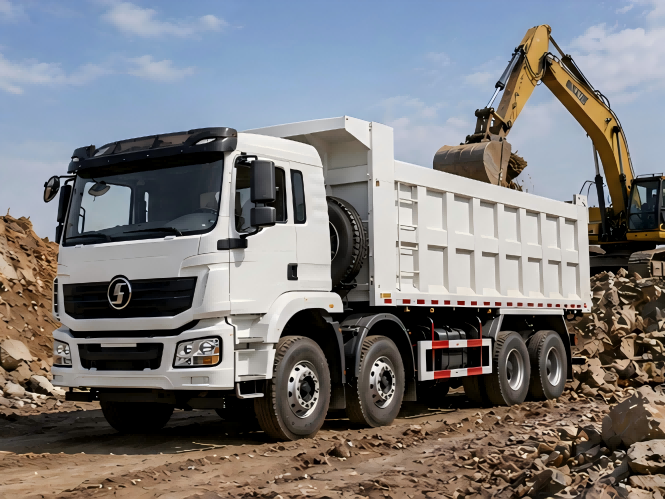

SHACMAN H3000 8×4 Dump Truck
Vehicle Type
Dump Truck / Tipper Truck
Cabin Model
H3000 Flat Roof / High Roof Cabin
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP12.430E201 / WP12.460E50 / WP13 Series
Horsepower
380 HP / 400 HP / 430 HP / 460 HP
Emission Standard
Euro II / Euro III / Euro V / Euro VI
Displacement
11.596 L / 12.54 L
Maximum Torque
2060–2300 N·m
Transmission Model
12JSD200T / 12JSD220TA
Gearbox
12 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Front Axle
9.5T MAN Axle ×2
Rear Axle
16T MAN Double Reduction Axle ×2
Axle Ratio
5.262 / 5.92 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Frame
850 × 300 mm Reinforced Chassis
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
12 + 1 Spare Tire
Wheelbase
1800 + 3575 + 1400 mm
Overall Dimension
10500 × 2550 × 3450 mm
Dump Body Length
7200–7800 mm
Dump Body Height
1500–1800 mm
Cargo Body Material
High-strength Wear-resistant Steel
Floor Thickness
8 mm / 10 mm Bottom Plate
Side Wall Thickness
6 mm / 8 mm Side Plate
Lifting System
HYVA Front Hydraulic Lifting
Hydraulic Cylinder
HYVA / Chinese Famous Brand
Payload Capacity
30–40 Tons
Application
Mining, Quarry, Construction Site, Earthwork Transport, Aggregate Hauling
Optional Configuration
Customized Configuration Supported
