Steering wheel

LHD/RHD

GVW（Kg）

22000

Emission standard

Euro III

Driver's cab

Half a row

Wheelbase

4200

Driving form

4×2

Vehicle model

EST-M

Vehicle width（mm)

2200

Announcement model

BJ1226VMPHD-F

External dimensions(mm)

7605×2460×2820

Engine model

ISDe245 30

Engine manufacturer

Cummins

Fuel type

Diesel

Power

180

Horsepower

245

Transmission model

8JS105TA

Transmission manufacturer

Fast

Front axle

5.5T

Rear axle

10T

Rear axle speed ratio

5.571

Brake control
system

、ABS

Tire

With inner tube radial tires 10.00R20

Fuel tank capacity

200L

Basic configuration

Manual air conditioning / MP3 / Central locking + Power windows

Number of tires

Double rear tyres 6+1pcs

Optional projects(Optional items come at an additional cost)

Electric rearview mirror + electric heated rearview mirror / manual doors and rearview mirror / diffuser / drive shaft / tubeless tires (imperial) 11R22.5 / tubeless tires (metric) 275/80R22.5 / tubeless tires (metric) 295/80R22.5 / electric air conditioning / MP5 / MP5+ multi-function steering wheel

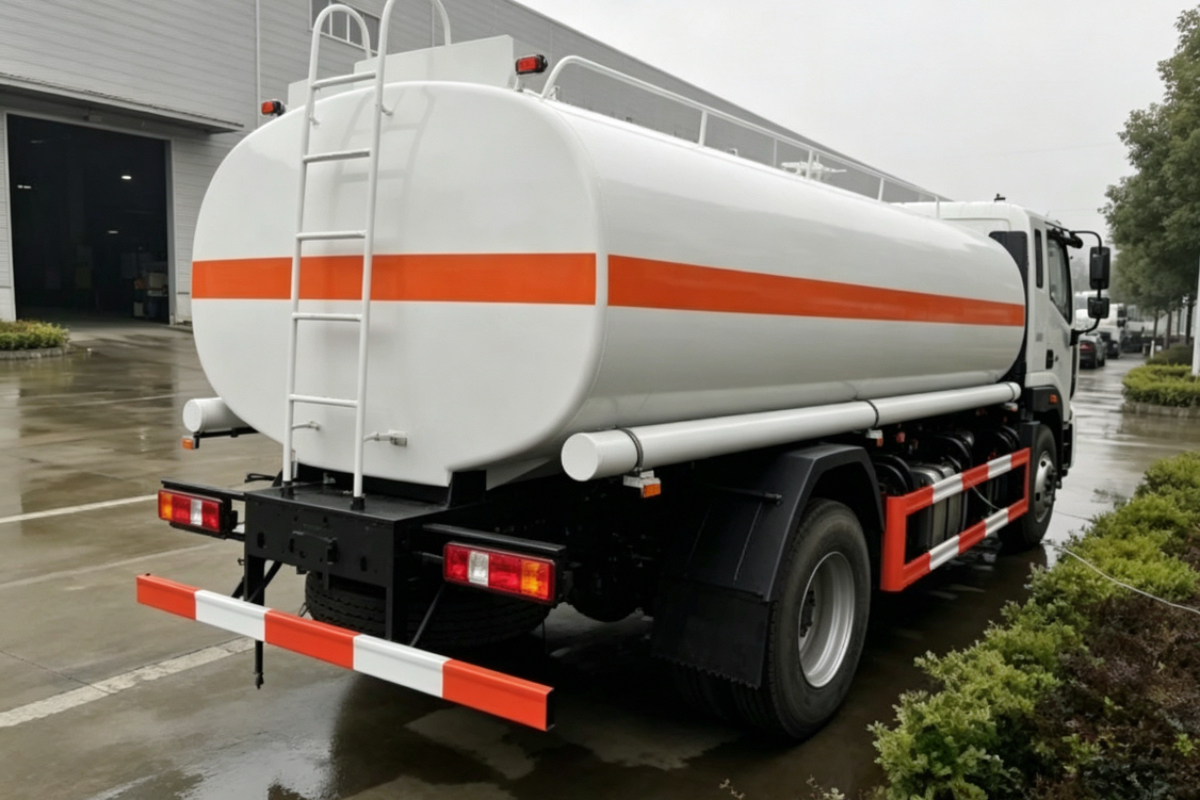

Container configuration parameters

10-sided volume material: Q235B, thickness 4mm, head 5mm,
Number of transverse partitions: 2
Diameter of manhole cover: 500mm
It can achieve pump-in-pump-out function, powered by the gearbox, pumping efficiency 60m³/h
