Foton Trucks

products > Foton Trucks

Vehicle type

RHD

Vehicle usage

Passenger transportation

Energy type

BEV

GVW

3400

Kerb weight (kg)

2180

L*W*H(mm)

5320×1695×2280

Wheelbase (mm)

3050

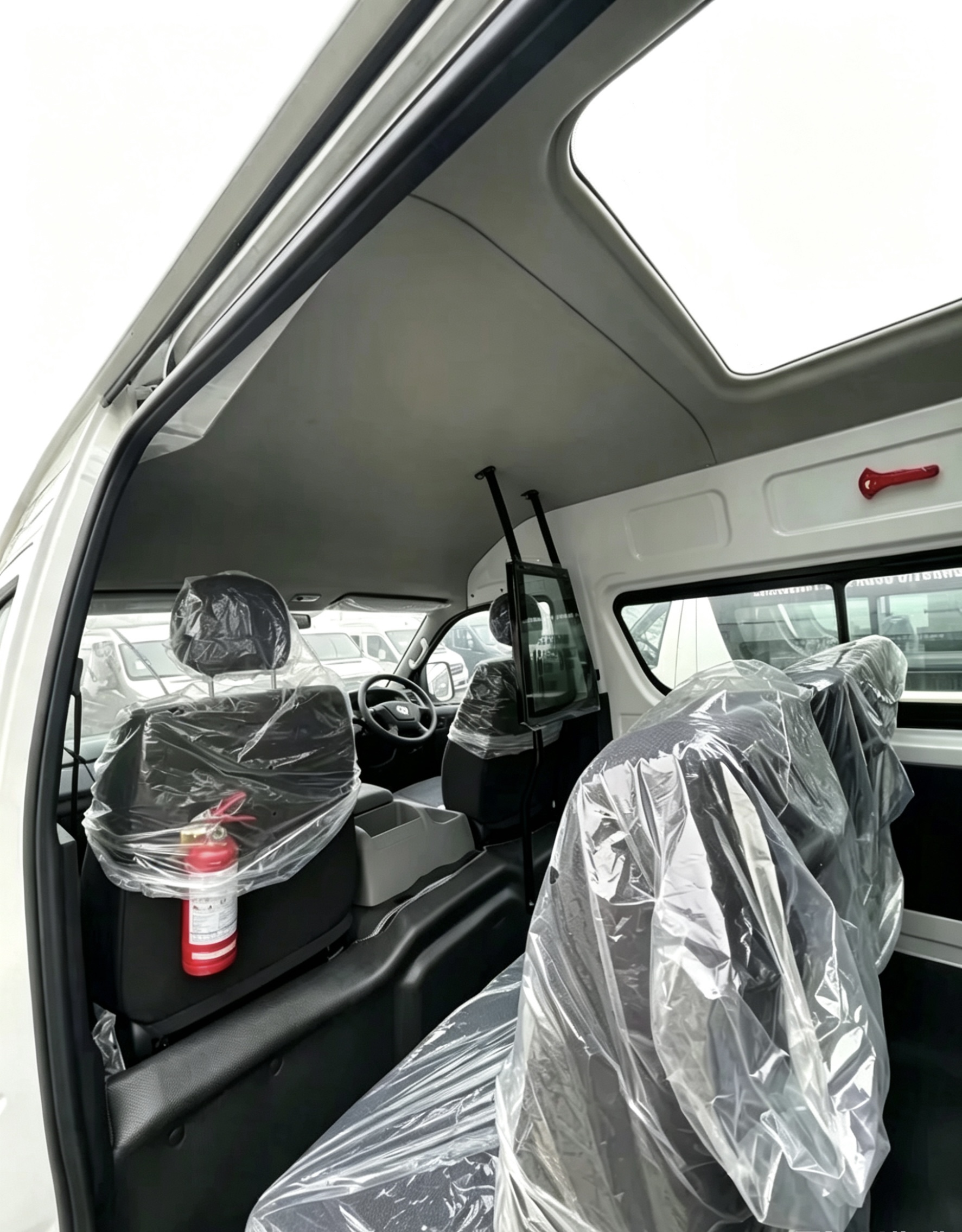

Number of seats

16

Driving type

Rear-wheel drive

Front/rear axles load(kg)

1600/1800

Range of travel distance (km)
WLTP

235

Maximum speed（km/h）

100

Steepness of the slope（%）

25

Side sliding doors

Manual double-sided sliding door

Charging port standard

●CCS2（○ GB）

Charging port form

Integrated fast and slow charging (Fast and Slow Charging System)

Manufacturers

CATL

Battery Type

LFP

PACK Energy (kW·h)

53.58

Charging time (20-100)%
AC/DC

7/1h

Battery pack

Single

Arrangement form

Bottom

Cooling method

Self cooling

Rated voltage V

334.88

Charging power(DC/AC)

50/● 7(○ 11)

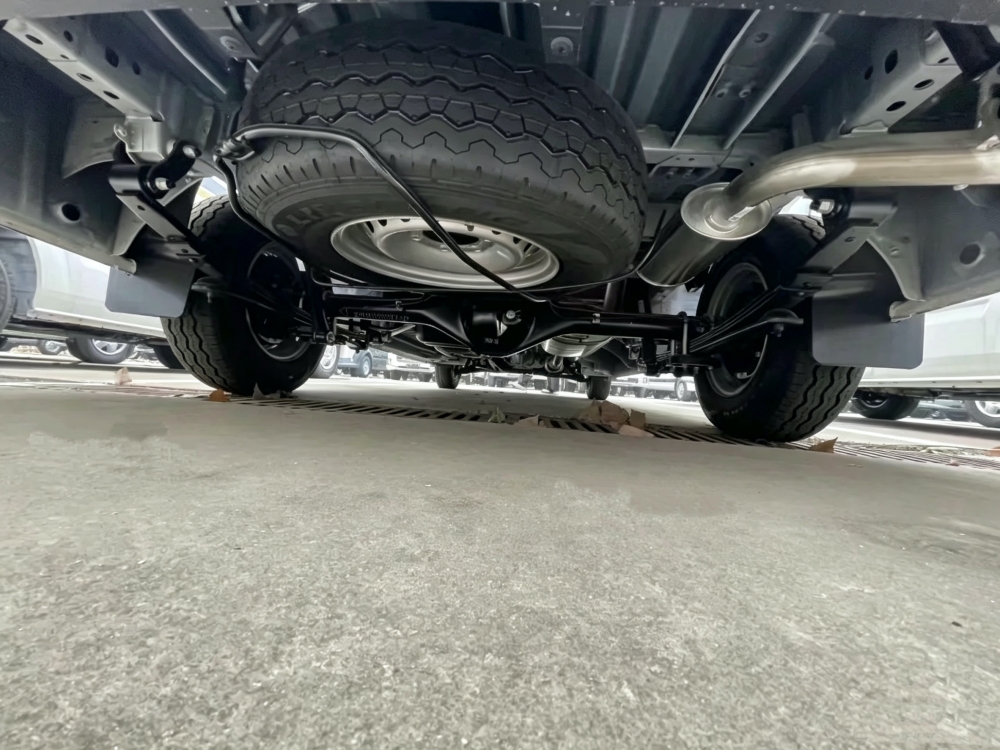

Axle type

Electric drive axle

Motor Type

Permanent Magnet Synchronous Motor

Power (Kw/rpm)

60/130

Torque（N·m/rpm）

110/330

Peak rotational speed (r/min)

12000
