Model

BJ1065EVJA5

Resource category

Logistics（with ePTO）

Features

ELE4-6T-CATL（100.07kwh）

Product platform

ELE4

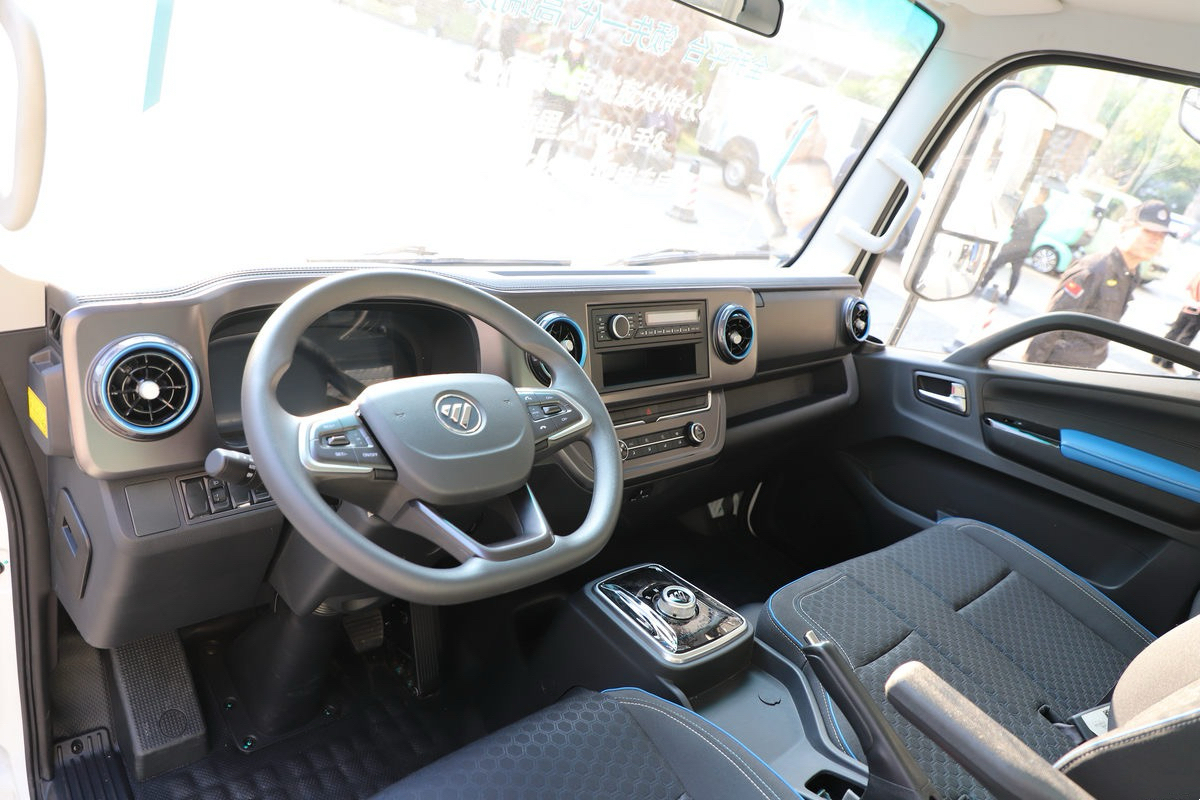

Cab

Single row 1880

Driving type

4×2

Cab-by the number

3

Steering wheel position

LHD

Gross Vehicle Weight (G.V.W.)

6000

Curb weight-chassis

2705

Load Mass

5T

Dimension（Chassis）

5960×2060×2250

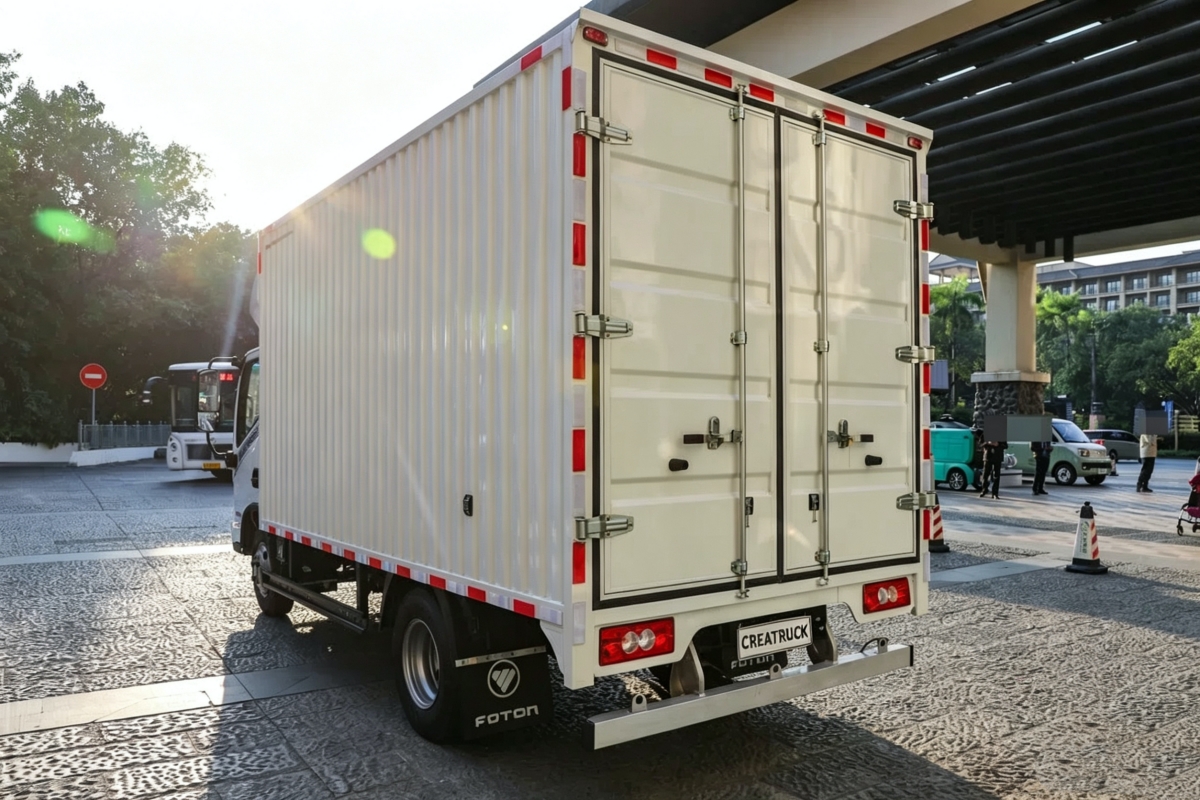

cargo box dimension

4100*2000*2000mm

Wheel base（mm）

3360

Wheel Tread（Front / Rear）(mm)

1590/1590

Overhang F/R(mm)

1110/1490

Min. Ground Clearance(mm)

160

Maximum Speed(km/h)

90

Grade Ability

0.25

Turning Diameter(m)

13.5

Acceleration(0-50 km/h)（s）

9

（WLTC/NEDC/CHTC/CWTVC)

WLTC

Test load

6T

Range（km）

256

AC Charge / DC charge（SOC 20% -100%(h）

1/9（11kw）

Motor Type

permanent magnet synchronous motor

Power Rate/Peak（kw）

75/167

Torque Rate/Peak（Nm）

/410

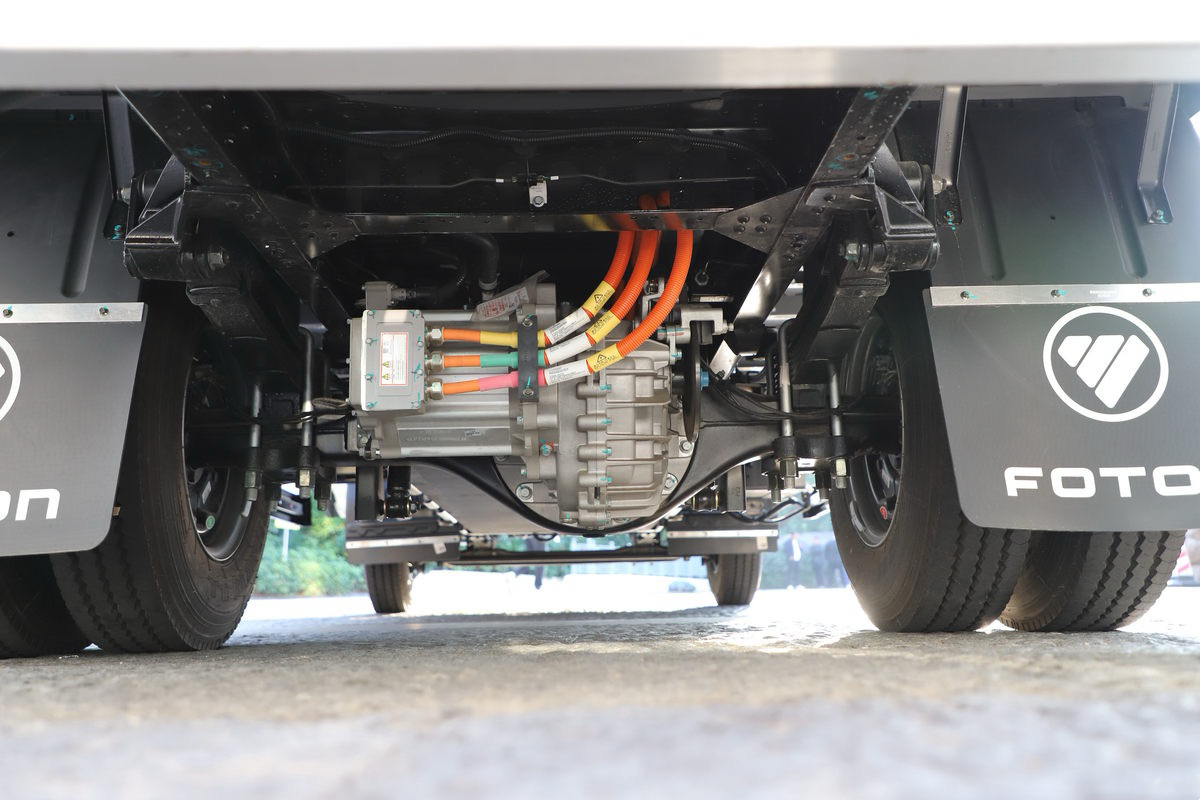

Type

e-alex

Motor Reduction Ratio

16.085

Gear box model

/

Gear Ratio

/

Type

3 in 1

Integration unit

MCU / DCDC /  PDU

Voltage（VDC）

350V-750V

Max. current(Aac)

440

Power distribution rating/peak (kW)

10/15

Battery Composition Material

LFP

Capacity（kwh）

100.07

Voltage(VDC）

540.96

Weight（kg）

700

Cooling type

liquid cooling

Layout

Middle

Charge mode

AC/DC

OBC Charge（kw）

11

BMS Max. allowed charging power (kw)

/

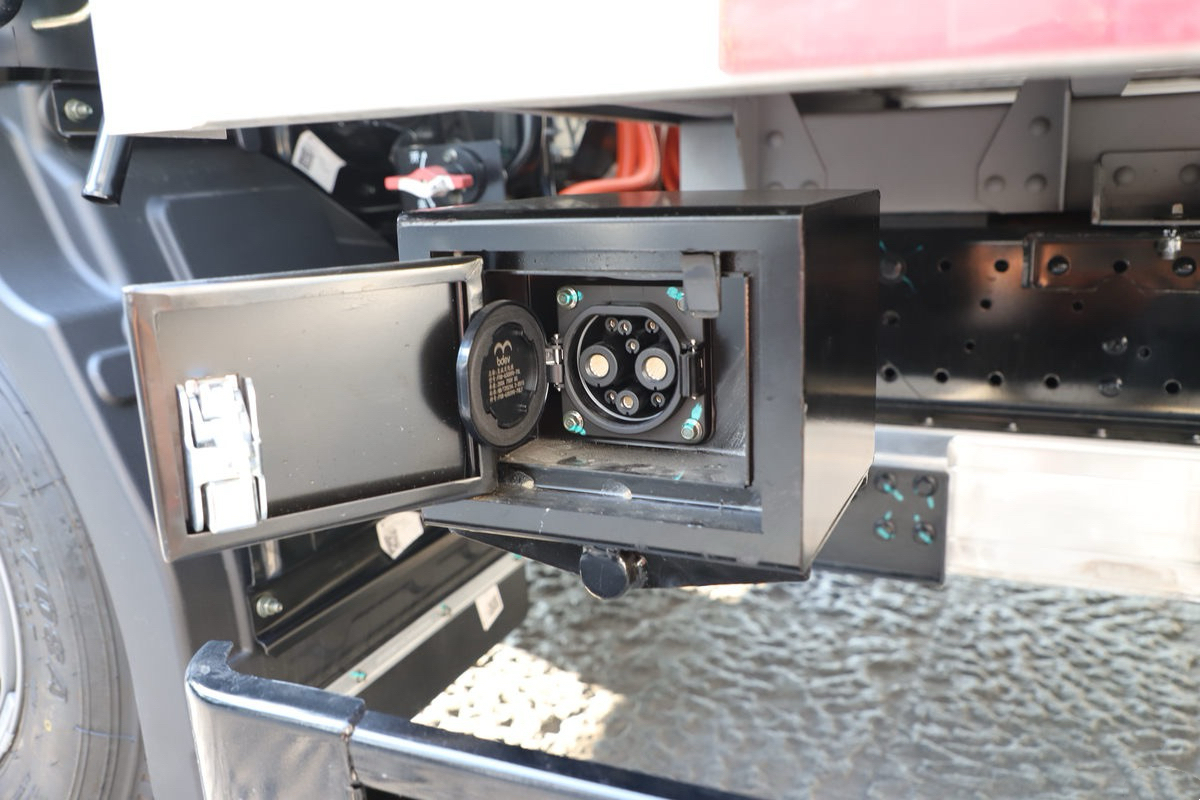

Charging socket

CCS TYPE2

Front axle type

Forged I-beam

Front axle capacity(t)

2.4

Rear axle model

E-reae alex

Rear axle type

Stamping welding integral type

Rear axle capacity（t）

4.5

Ratio

16.085
