Vehicle Model

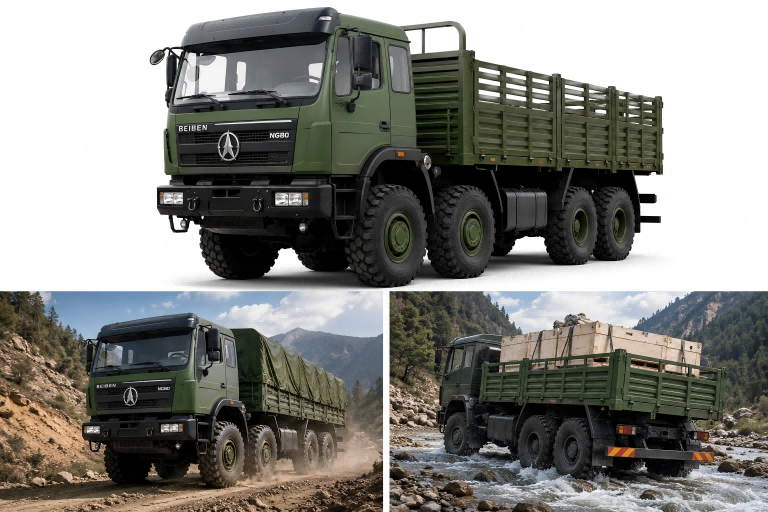

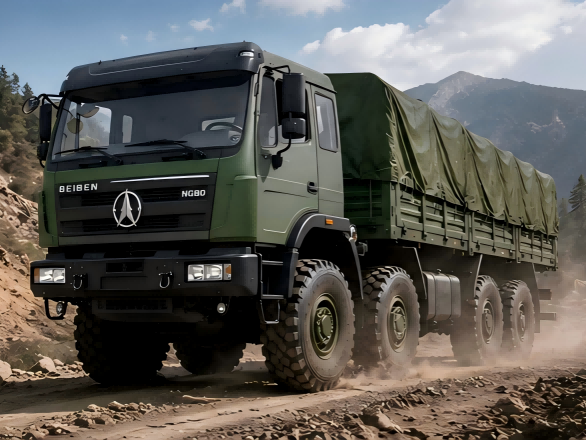

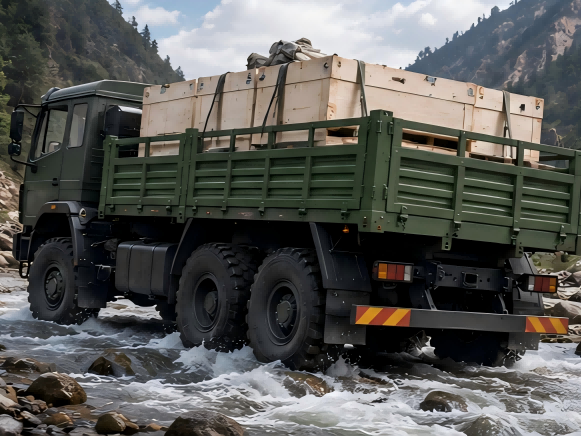

BEIBEN NG80 8×8 Off-Road Cargo Truck
Drive Type
8×8 All-Wheel Drive
Cab Type
NG80 Flat Roof / Sleeper Cab
Engine Model
WP12 Series Diesel Engine
Emission Standard
Euro II / Euro III / Euro V
Maximum Torque
1,600–2,300 N·m
Transmission
FAST 10-Speed / 12-Speed Manual
Transfer Case
Heavy-Duty Two-Speed Transfer Case
Front Axle Capacity
2 × 9 Tons
Rear Axle Capacity
2 × 16 Tons
Suspension
Heavy-Duty Multi-Leaf Spring Suspension
Payload Capacity
20–30 Tons
Cargo Body Type
Steel Stake Side Cargo Body
Cargo Body Length
7,500–9,500 mm
Cargo Body Width
2,400–2,550 mm
Overall Dimensions (L×W×H)
11,000–12,500 × 2,550 × 3,500–3,950 mm
Wheelbase
1,950 + 4,600 + 1,450 mm
Ground Clearance
≥ 320 mm
Fording Depth
800–1,200 mm
Tire Specification
14.00R20 / 16.00R20 Off-Road Tires
Fuel Tank Capacity
400–600 L
Braking System
Dual-Circuit Air Brake System
Steering System
Hydraulic Power Steering
Application
Military Logistics, Forestry Operations, Mining Support, Mountain Transport, Oil & Gas Field Transportation
