Vehicle Model

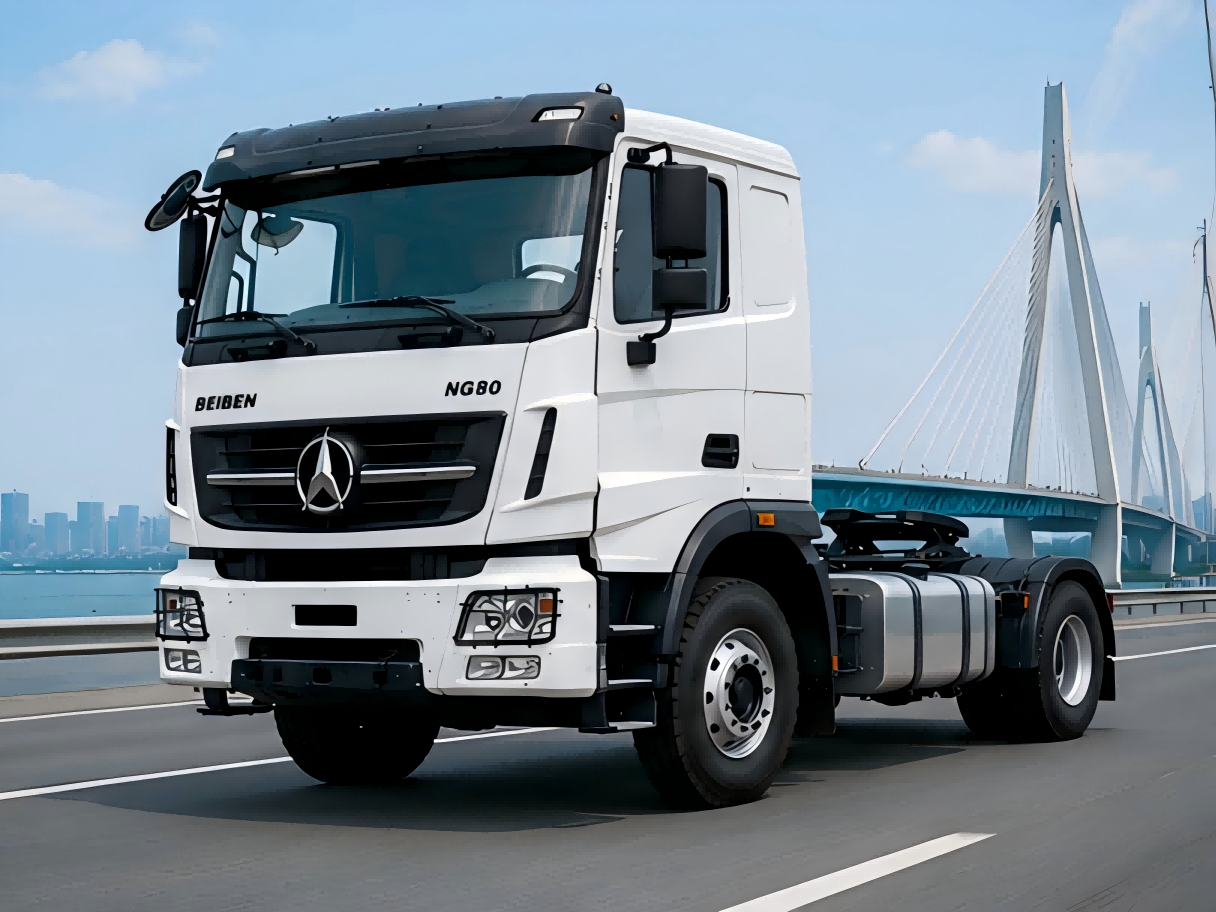

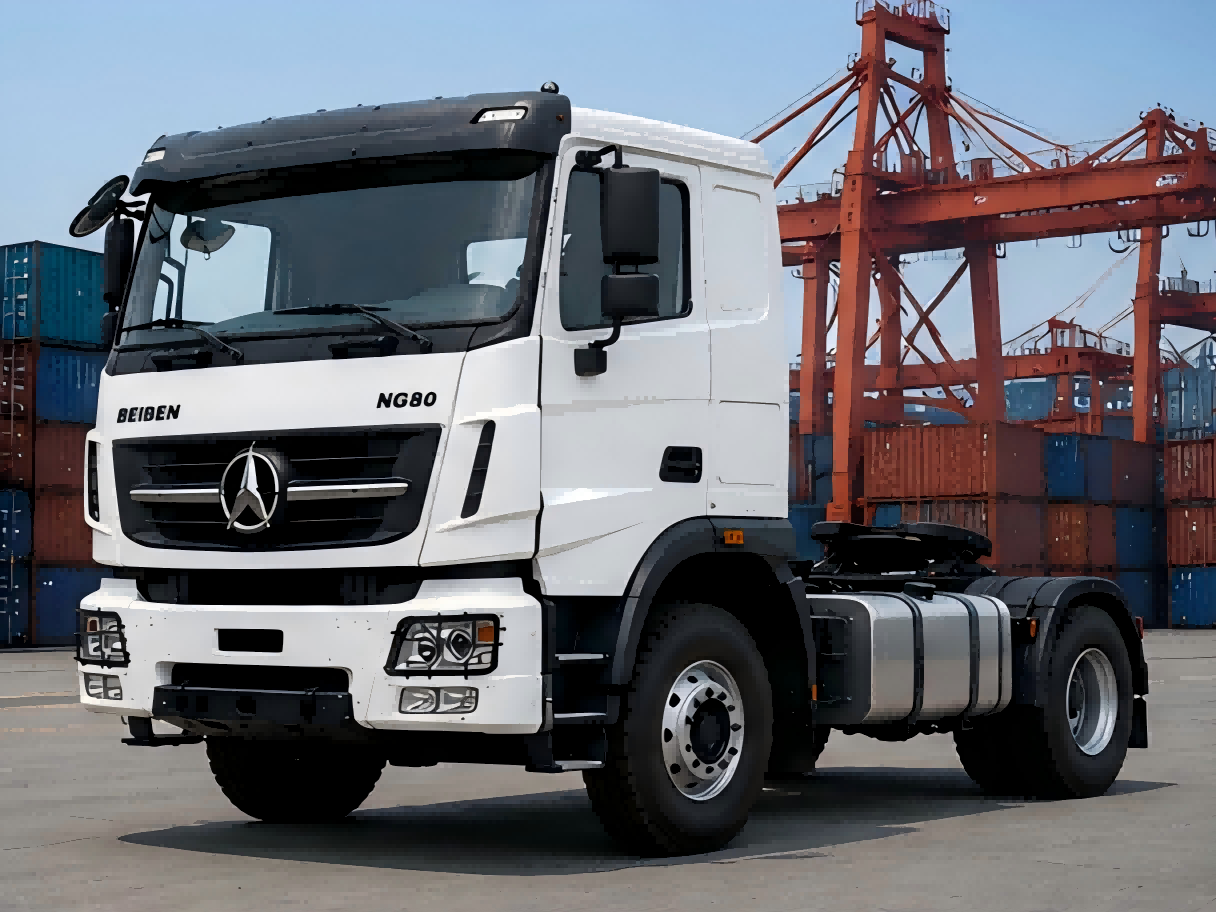

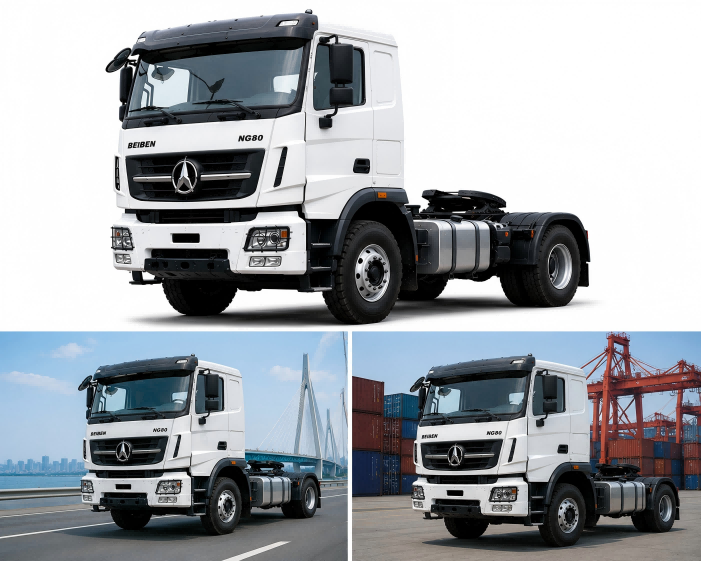

BEIBEN NG80 4×2 Tractor Truck
Vehicle Type
Prime Mover / Tractor Head
Cabin Model
BEIBEN NG80 High Roof Sleeper Cabin
Cabin Type
Long-haul Luxury Cabin
Driving Position
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + Double Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Multifunction Steering Wheel, Electric Window, Central Locking, Multimedia System
Engine Model
WP10.380E32 / WP12.430E50 / WP13.480E50
Engine Type
Inline 6-cylinder Turbocharged Diesel Engine
Horsepower
380 HP / 430 HP / 480 HP
Displacement
9.7L – 12.54L
Maximum Torque
1600–2300 N·m
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSD180TA / 12JSD200TA
Gearbox
12 Forward + 2 Reverse
Clutch
430 mm Diaphragm Spring Clutch
Front Axle
7.5T Heavy-duty Front Axle
Rear Axle
13T Single Reduction Drive Axle
Axle Ratio
3.7 / 4.11 / 4.44
Steering System
ZF Hydraulic Power Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Front & Rear Multi-leaf Spring Suspension
Fuel Tank Capacity
400L / 600L / 800L
Fuel Tank Material
Aluminum Alloy
Tire Specification
315/80R22.5 / 12.00R20
Number Of Tires
6 + 1 Spare Tire
Wheelbase
3600 mm / 3800 mm
Overall Dimension
6200 × 2500 × 3850 mm
Fifth Wheel
50# / 90# JOST Optional
Fifth Wheel Height
1250–1350 mm
King Pin Compatibility
2 Inch / 3.5 Inch
Application
Container Transport, Highway Logistics, Express Freight, Regional Distribution, Port Operations
Optional Configuration
Hydraulic System, Retarder, Aluminum Wheels, Air Suspension, Customized Color
