Vehicle Model

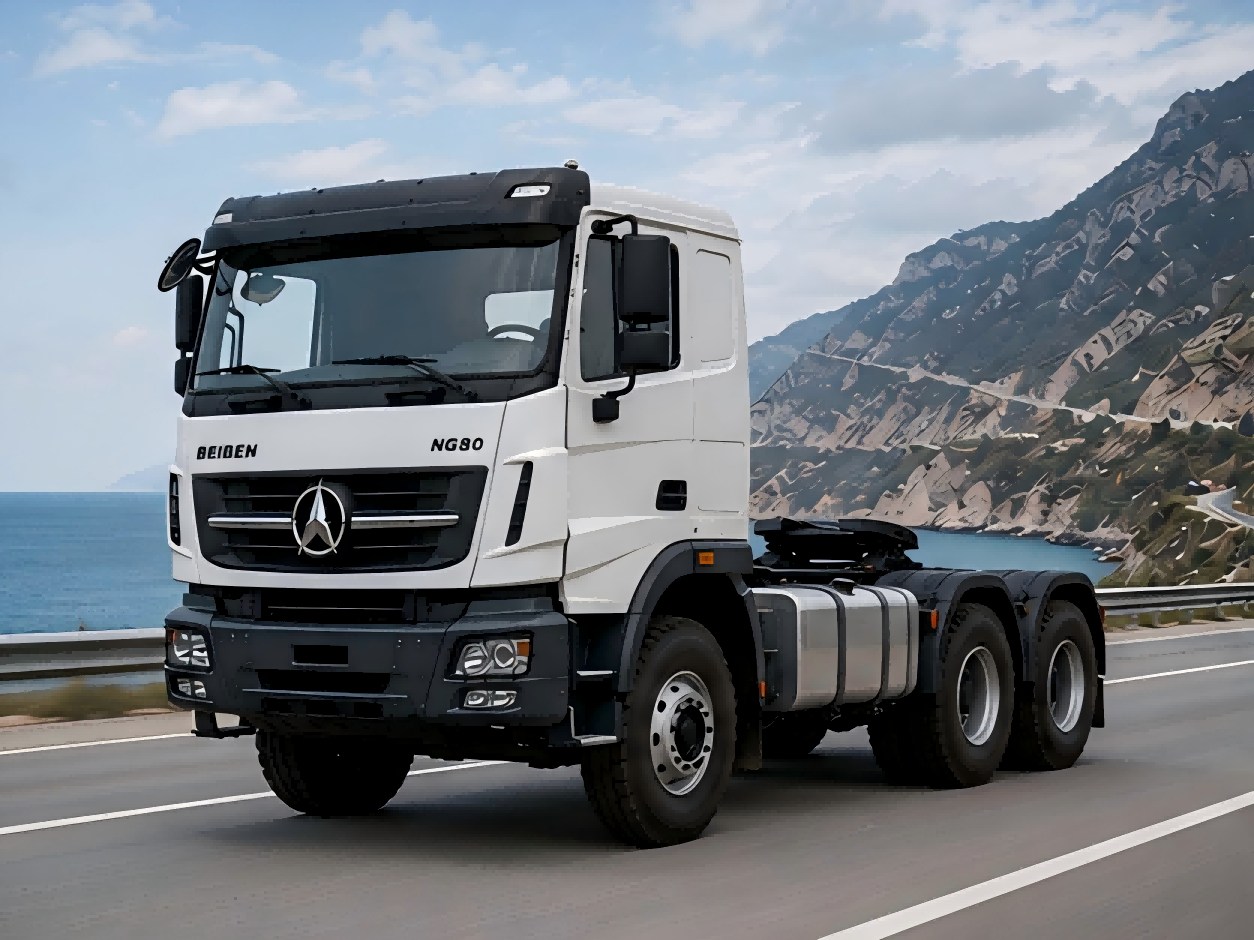

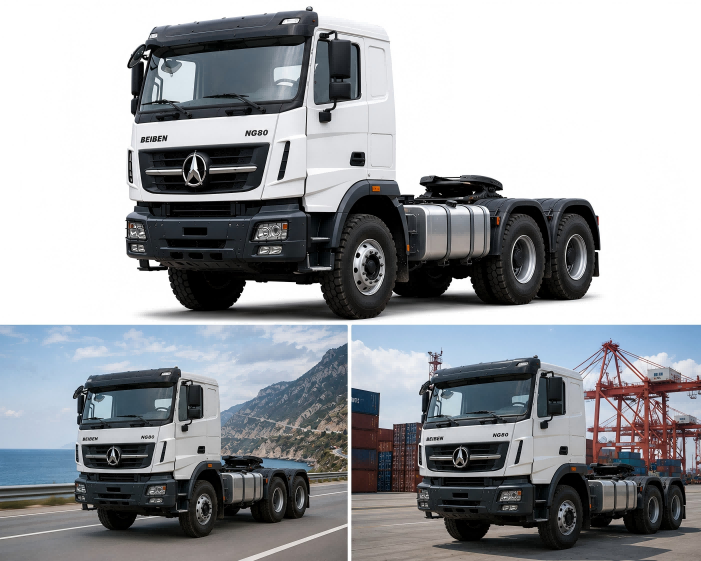

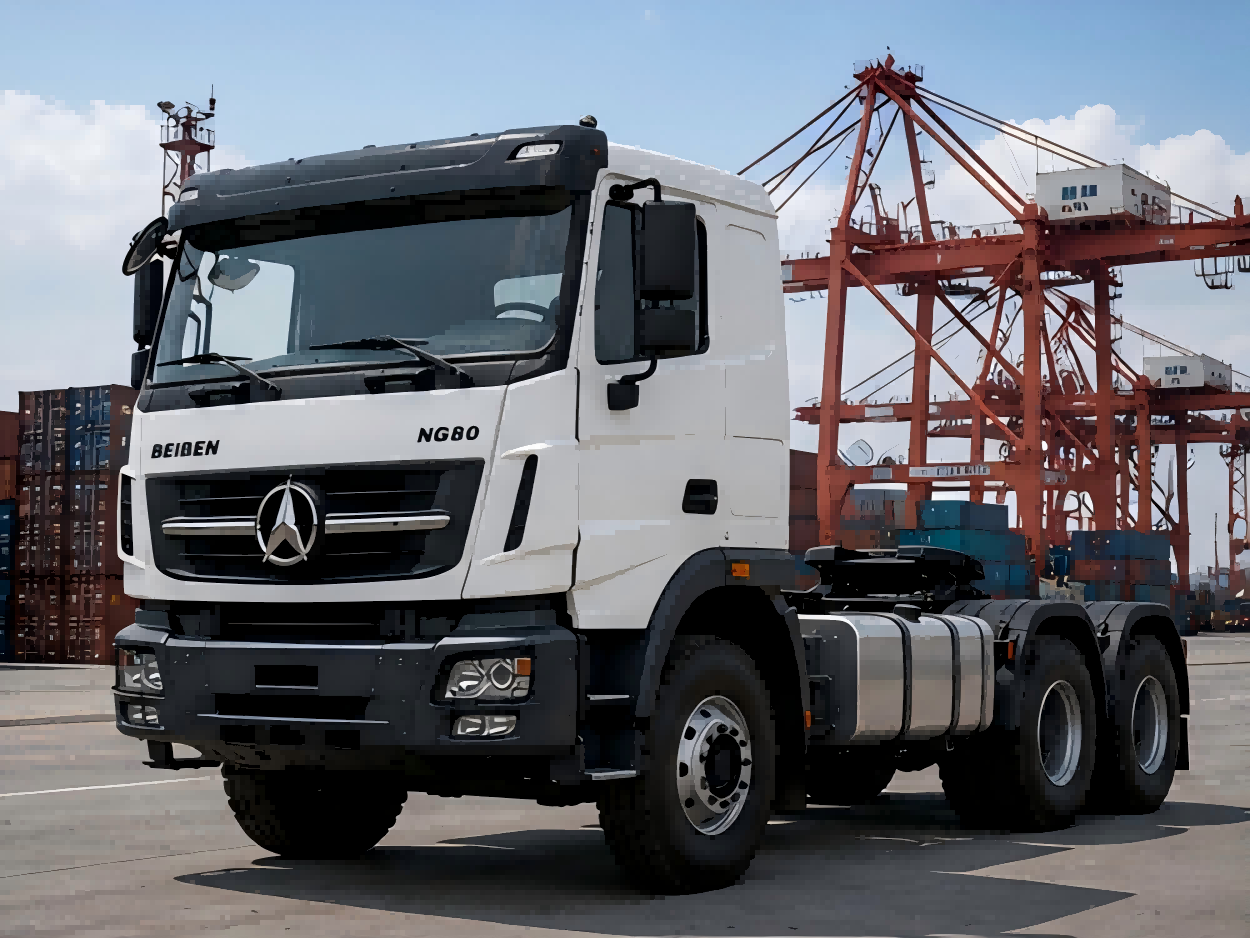

BEIBEN NG80 6×4 Tractor Truck
Vehicle Type
Prime Mover / Tractor Head
Cabin Model
NG80 Flat Roof / High Roof Sleeper Cabin
Cabin Type
Long-distance Comfort Cabin
Driving Position
LHD / RHD Optional
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock, MP5 Multimedia System
Engine Model
WP10.380E32 / WP12.430E50 / WP13.480E50
Engine Type
Inline 6-cylinder Turbocharged Intercooled Diesel Engine
Horsepower
380 HP / 420 HP / 430 HP / 480 HP
Displacement
9.7L – 12.5L
Maximum Torque
1600–2300 N.m
Emission Standard
Euro II / Euro III / Euro V
Fuel Injection System
Common Rail Direct Injection
Transmission Model
12JSD200TA / 12JSD240TA
Gearbox
12 Forward + 2 Reverse
Clutch
430 mm Reinforced Clutch
Front Axle
7.5T Heavy-duty Front Axle
Rear Axle
2×13T Reduction Drive Axles
Axle Ratio
3.7 / 4.2 / 4.8
Differential Lock
Equipped
Frame Dimension
300×90×(8+5) mm
Steering System
ZF Hydraulic Power Steering
Service Brake
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Front Suspension
Multi-leaf Spring Suspension
Rear Suspension
Heavy-duty Bogie Suspension
Fuel Tank Capacity
400L / 600L / 800L
Fuel Tank Material
Aluminum Alloy
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Wheelbase
3200 + 1400 mm / 3400 + 1400 mm
Overall Length
6800–7200 mm
Overall Height
3200–3850 mm
Fifth Wheel
50# / 90# JOST Optional
King Pin Compatibility
2 Inch / 3.5 Inch
Application
Long-haul Logistics, Container Transport, Bulk Cargo Transport, Port Operations
Optional Configuration
Retarder, Hydraulic System, Aluminum Wheels, Air Suspension, Customized Color
