Vehicle Model

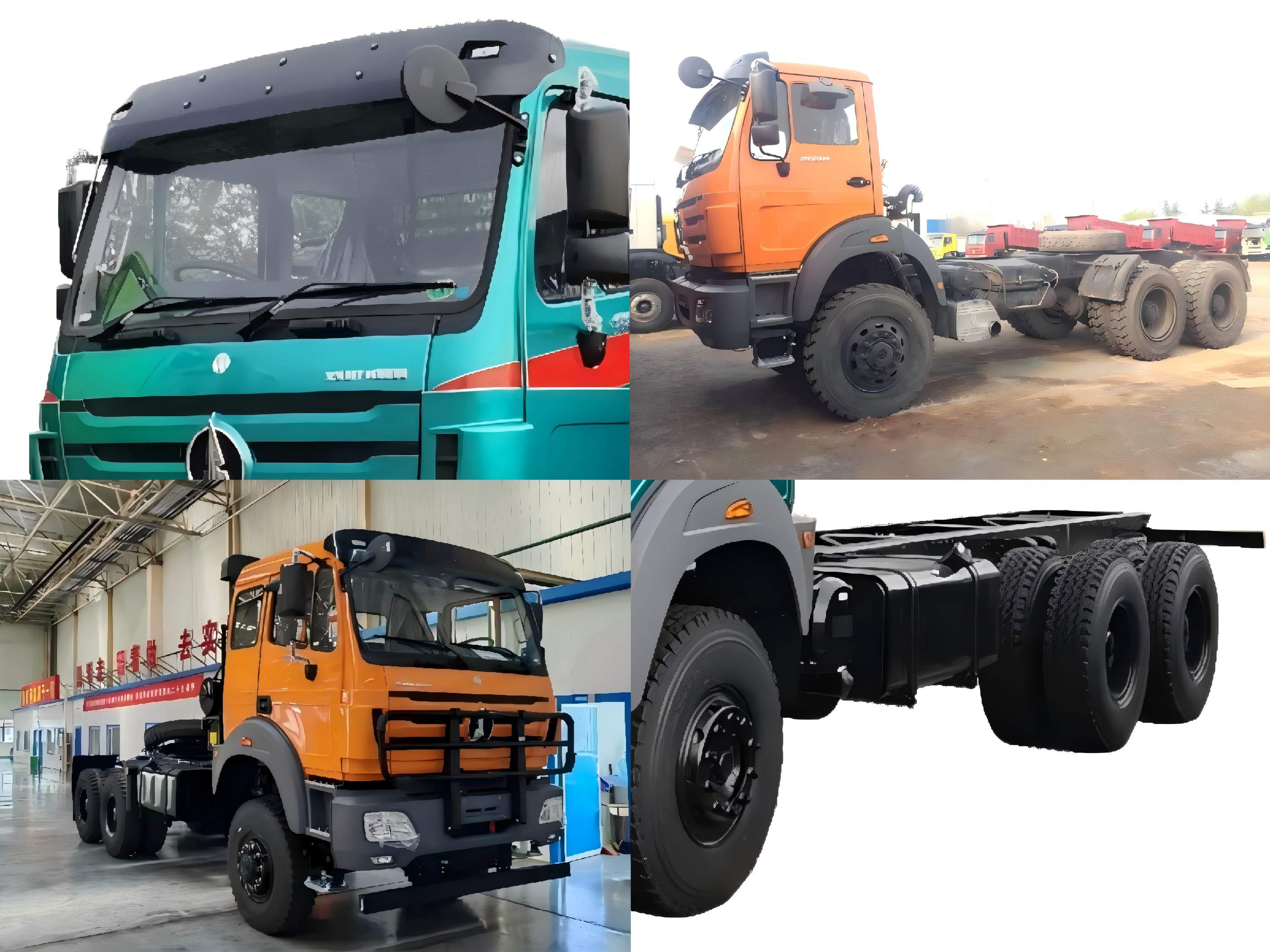

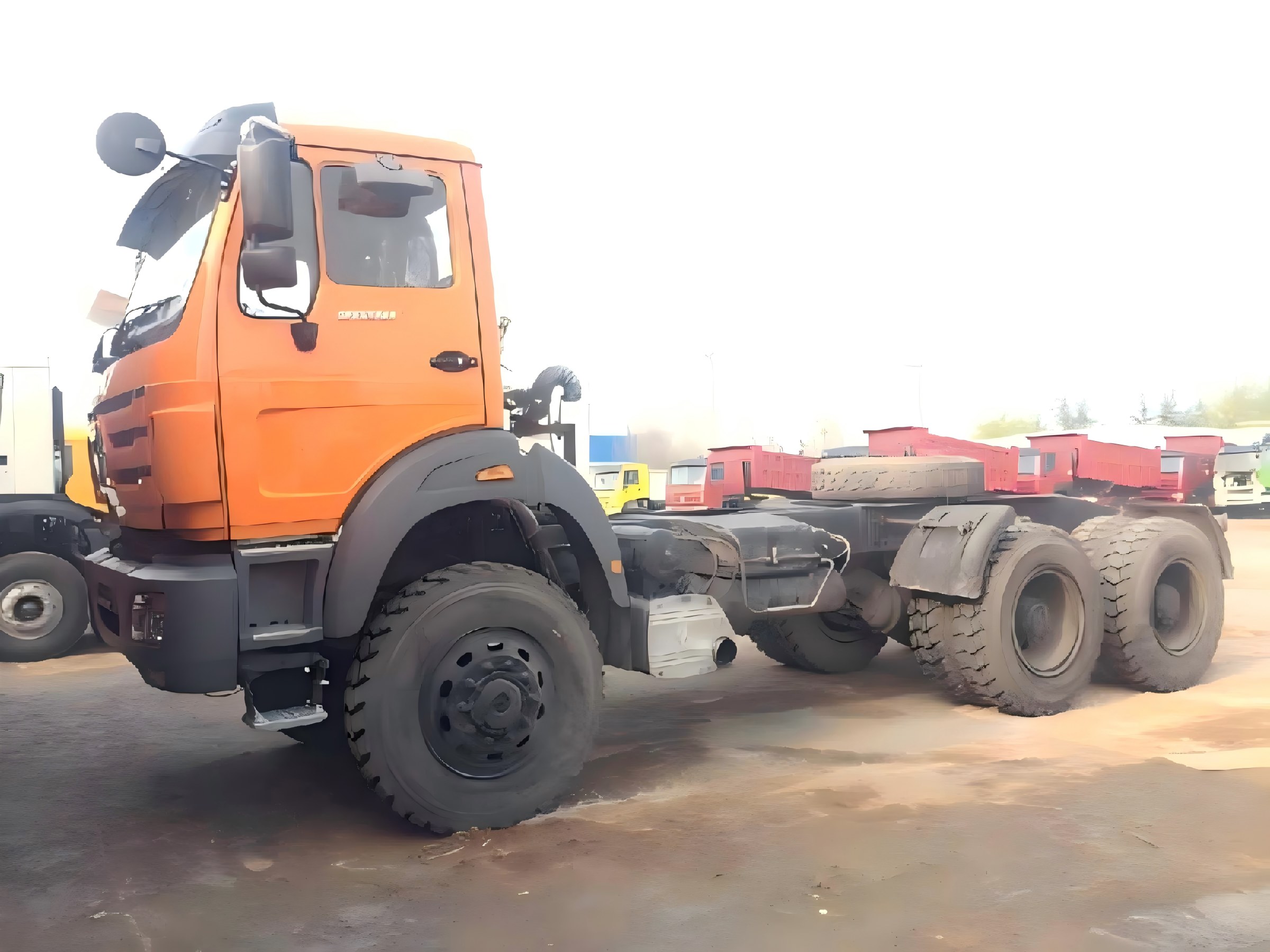

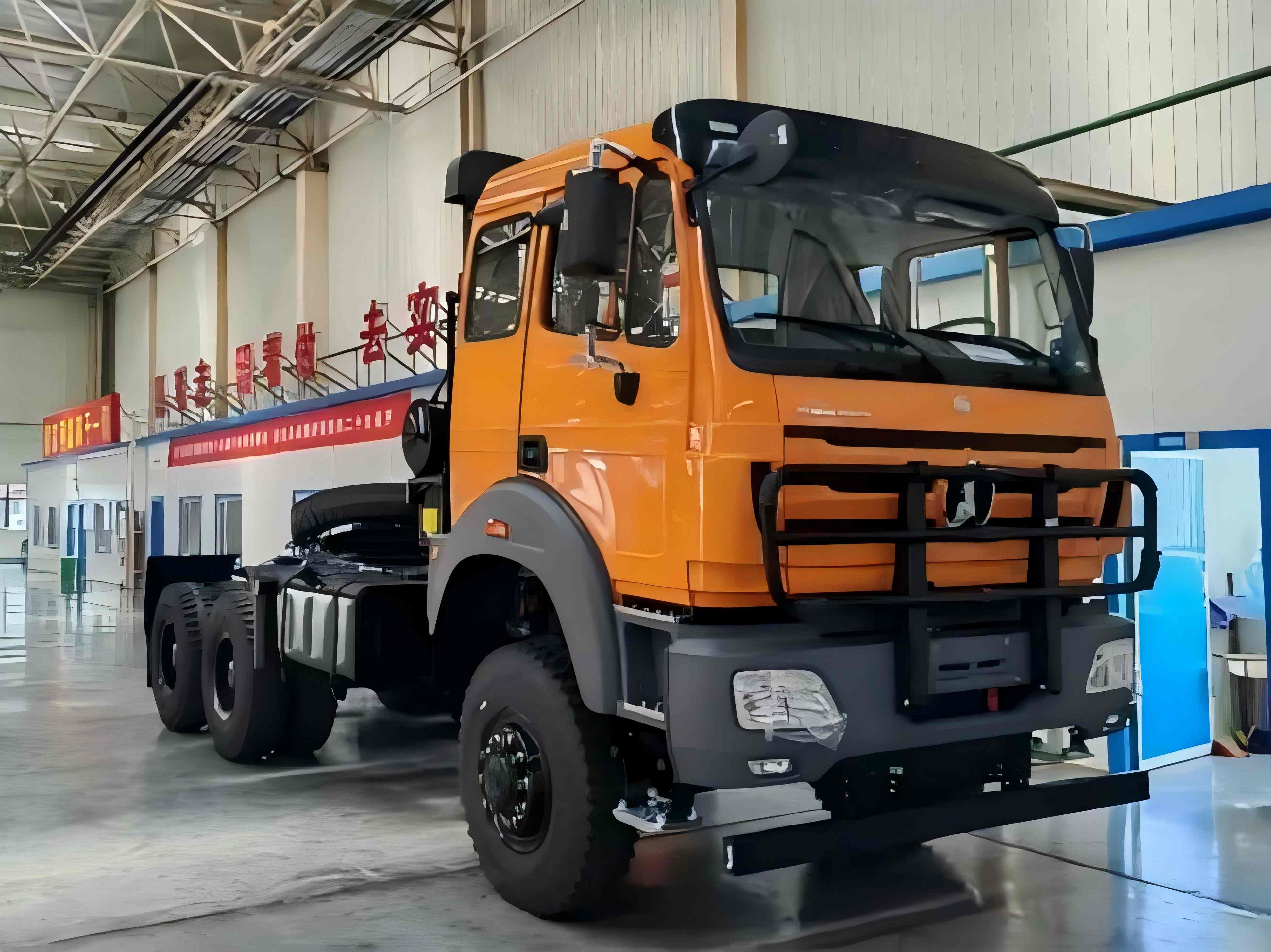

BEIBEN NG80 6×6 Off-Road Tractor Truck
Drive Type
6×6 Permanent All-Wheel Drive
Application
Mining / Quarry / Construction / Oil Field / Military Logistics / Extreme Terrain Transport
Engine Brand
WEICHAI (Optional: Cummins / WP Series Export Version)
Engine Model
WP12 / WP13 Series Heavy-duty Diesel Engine
Power Output
430 HP / 480 HP / 550 HP Optional
Max Torque
2060 – 2550 N·m @ Low RPM High Load Performance
Engine Type
6-Cylinder Inline Turbocharged Intercooled Diesel Engine
Emission Standard
Euro II / III / IV / V Export Options
Transmission Brand
FAST Gear (China Heavy Duty Transmission)
Gearbox
12 Forward + 2 Reverse Heavy-duty Gearbox
Clutch Type
Heavy-duty Dry Single Plate Hydraulic Assist Clutch
Transfer Case
Full-time Heavy-duty 2-Speed Transfer Case
Front Axle
9.5 Ton Driven Steering Axle with Reinforcement
Rear Axle
2 × 16 Ton Hub Reduction Heavy-duty Axles
Differential Lock
Inter-axle + Cross-axle Mechanical Lock System
Frame Structure
High Tensile Strength Ladder Frame (Reinforced Double Layer)
Frame Size
Approx. 320 × 90 × (10+8) mm Reinforced Steel Beam
Suspension System
Heavy-duty Multi-leaf Spring / Mining Bogie Suspension
Steering System
ZF Hydraulic Power Steering System
Brake System
Dual Circuit Air Brake System + Engine Exhaust Brake
Parking Brake
Spring Energy Storage Brake (Fail-safe Type)
ABS System
Optional Heavy-duty ABS System
Electrical System
24V Heavy-duty Electrical System with Dual Battery Setup
Fuel Tank Capacity
400 – 600 Liters Aluminum Alloy Fuel Tank
Fuel Consumption
Approx. 35–45 L / 100 km (Loaded Mining Condition)
Tire Specification
14.00R20 / 14.00R24 Off-road Heavy-duty Tires
Number of Tires
10 Tires + 1 Spare Tire
Wheelbase
4200 + 1450 mm (Standard Mining Configuration)
Ground Clearance
Approx. 380 mm High Clearance Design
Wading Depth
Up to 800 mm Water Crossing Capability
Max Speed
80 km/h (Speed Limited for Safety)
Gradeability
≥45% Steep Slope Capability
Cabin Type
Reinforced Sleeper Cabin with Noise & Vibration Reduction
Cab Features
Air Conditioner / Air Suspension Seat / Electric Windows / Central Locking
Maintenance Interval
Extended Service Interval for Mining Operation (Heavy Duty Use)
Operating Temperature
-40°C to +50°C Extreme Environment Capability
Customization Options
Engine Power / Axle Ratio / Tire Pattern / Cabin Type / Mining Package / Color Customization
