Vehicle Model

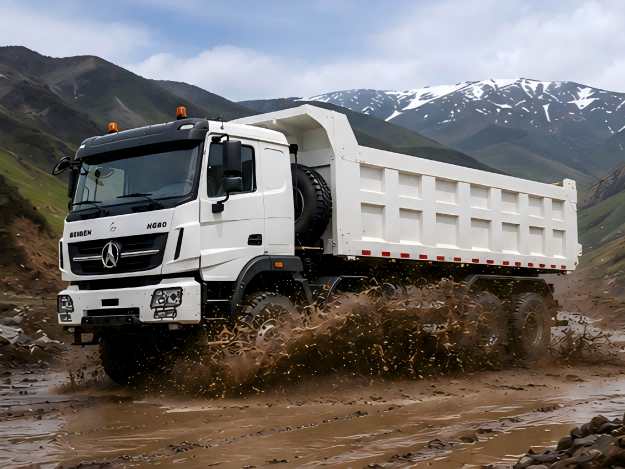

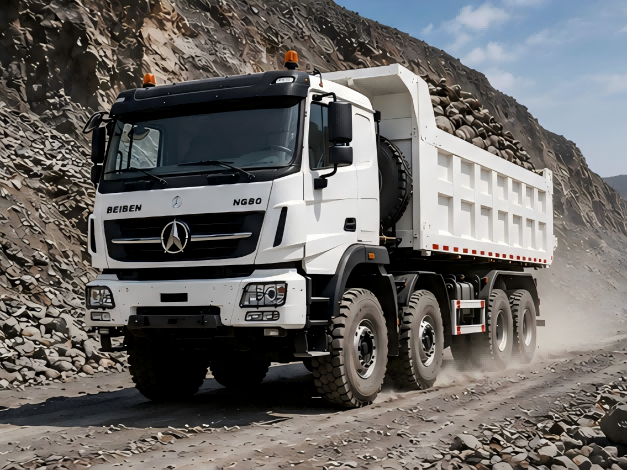

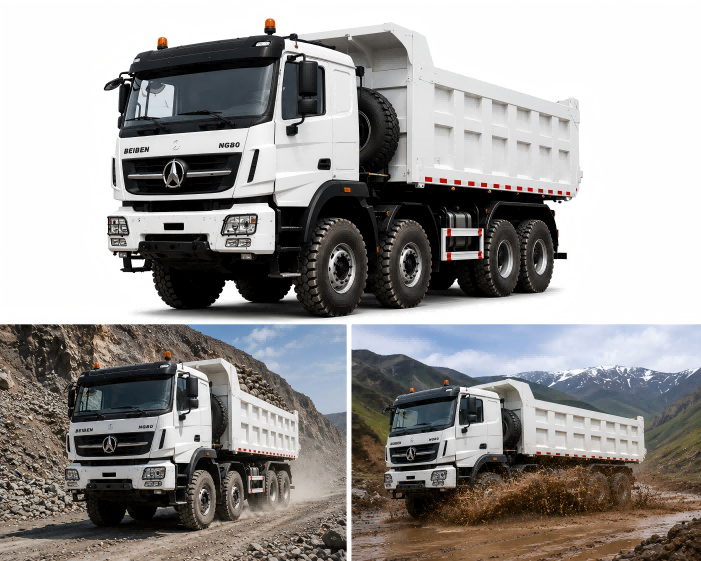

BEIBEN NG80 8×8 Off-Road Dump Truck
Vehicle Type
Off-Road Mining Dump Truck
Drive Type
8×8 Full Wheel Drive
Cabin
NG80 Reinforced Off-Road Cabin
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
A/C, Air Suspension Seat, Electric Window, Central Lock, MP5 Multimedia System
Engine Model
WP13.480E501 / WP13.550E501
Horsepower
480 HP / 500 HP / 550 HP
Emission Standard
Euro II / Euro III / Euro V
Engine Type
Inline 6-cylinder, Turbocharged, Intercooled Diesel Engine
Maximum Torque
2300 – 2550 N·m
Transmission Model
12JSD240TA / 16JSD260TA
Gearbox
12 Forward & 2 Reverse
Transfer Case
Heavy-duty Full-time 8×8 Transfer Case
Front Axle
2 × 9.5T Off-road Drive Axles
Rear Axle
2 × 16T Hub Reduction Drive Axles
Differential Lock
Cross Axle + Inter Axle Differential Locks
Frame Dimension
320 × 90 × (10+10) mm
Frame Material
High-strength Alloy Steel
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Pneumatic Brake
Front Suspension
Heavy-duty Multi-leaf Spring
Rear Suspension
Mining Bogie Suspension
Fuel Tank Capacity
500 L / 600 L
Tire Specification
14.00R20 / 16.00R20 Off-road Tires
Number Of Tires
12 + 1 Spare Tire
Wheelbase
1950 + 3400 + 1450 mm
Cargo Body Length
6500 – 7800 mm
Cargo Body Height
1800 – 2200 mm
Cargo Body Material
Wear-resistant High-strength Steel
Floor Thickness
10 mm / 12 mm / 14 mm
Side Thickness
8 mm / 10 mm
Hydraulic System
HYVA Front Hydraulic Cylinder
Payload Capacity
35 – 45 Tons
Application
Open-pit Mining, Quarry Operations, Mountain Engineering, Muddy Off-road Transport
Optional Configuration
Customized Body, Engine, Tire, Axle Ratio, Color and Mining Package Available
