Vehicle Model

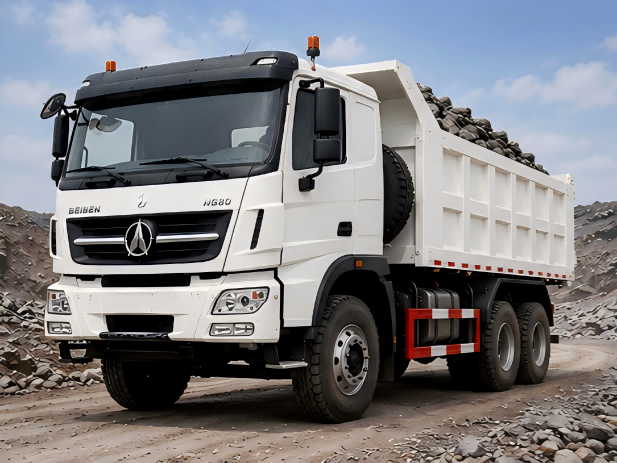

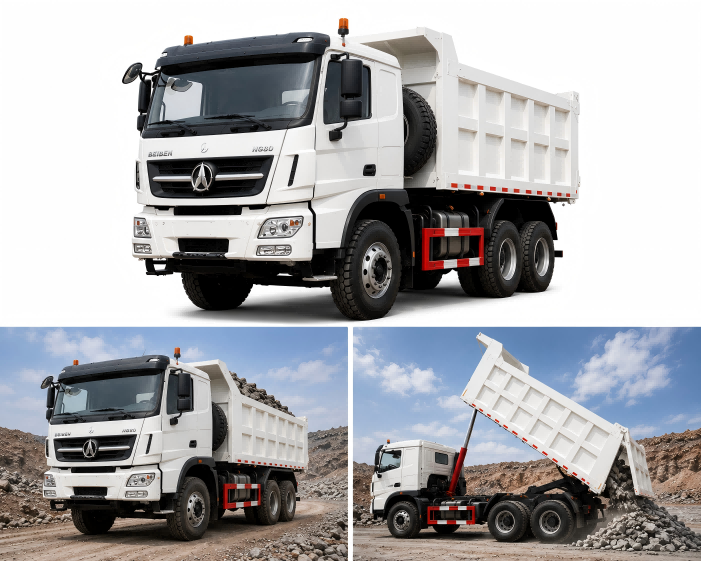

BEIBEN NG80 6×4 Dump Truck
Vehicle Type
Dump Truck / Tipper Truck
Cabin
NG80 Flat Roof / High Roof Sleeper Cabin
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
A/C, Air Suspension Seat, Electric Window, Central Lock, Multifunction Dashboard
Engine Brand
WEICHAI / YUCHAI
Engine Model
WP10.380E32 / WP12.400E50 / WP12.430E50
Horsepower
340 HP / 380 HP / 400 HP / 430 HP
Emission Standard
Euro II / Euro III / Euro V
Engine Type
Inline 6-cylinder, Turbocharged, Intercooled Diesel Engine
Displacement
9.726L – 11.596L
Maximum Torque
1600 – 2060 N·m
Transmission Model
10JSD180 / 12JSD200TA
Gearbox
10 Forward & 2 Reverse / 12 Forward & 2 Reverse
Clutch
430 mm Reinforced Diaphragm Clutch
Front Axle
7.5T Heavy-duty Front Axle
Rear Axle
13T / 16T Reduction Drive Axles
Differential Lock
Equipped
Axle Ratio
5.263 / 5.921 / 6.733
Frame Dimension
317 × 90 × (8+7) mm
Steering System
ZF Hydraulic Power Steering
Brake System
Dual Circuit Pneumatic Brake
Parking Brake
Spring Energy Brake
Auxiliary Brake
Engine Exhaust Brake
Front Suspension
Multi-leaf Spring Suspension
Rear Suspension
Heavy-duty Bogie Suspension
Fuel Tank Capacity
300L / 400L
Fuel Tank Material
Aluminum Alloy
Tire Specification
12.00R20 / 12R22.5 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Wheelbase
3800 + 1450 mm / 4200 + 1450 mm
Overall Dimension
8500 × 2550 × 3450 mm
Cargo Body Length
5600 – 6800 mm
Cargo Body Height
1200 – 1800 mm
Cargo Body Material
High-strength Wear-resistant Steel
Floor Thickness
8 mm / 10 mm
Side Wall Thickness
6 mm / 8 mm

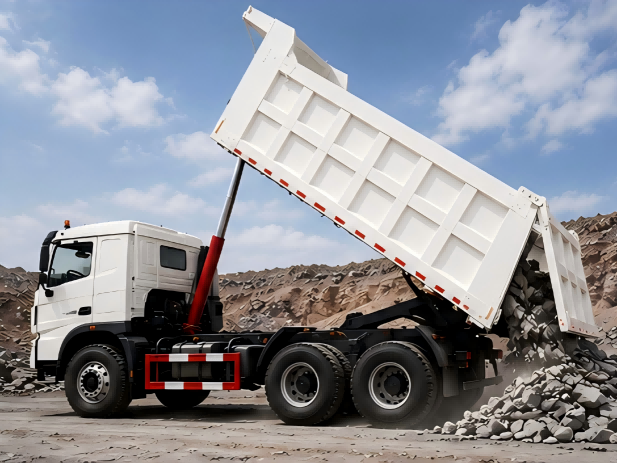

Hydraulic System
HYVA Front Hydraulic Cylinder
Payload Capacity
20 – 25 Tons
Application
Construction, Mining, Sand Transport, Aggregate Hauling, Earthwork Projects
Optional Configuration
Customized Body Size, Engine, Tire, Axle Ratio and Color Available
