Foton Trucks

products > Foton Trucks

Steering wheel

LHD

Load capacity (T)

3

GVW（T）

3.5

Emission standard

Euro II

Driver's cab

Single row

Wheelbase

2900

Driving form

4×2

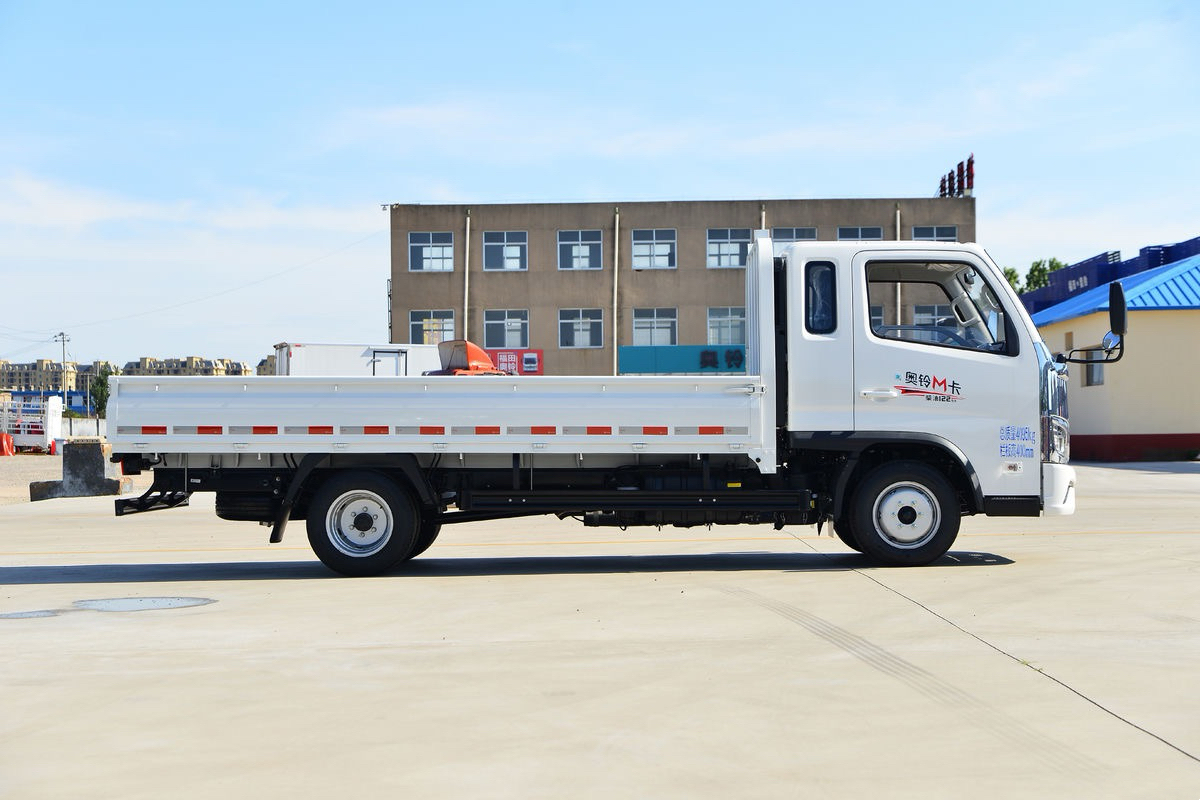

Vehicle model

Miler

Vehicle width（mm)

1730

Announcement model

BJ1031V5JV5-AA1

External dimensions(mm)

Chassis：5355×1845×2065

Engine model

HY4G15F

Engine manufacturer

Honeycomb power

Fuel type

Gas

Power

100

Horsepower

136

Transmission model

LD626MR

Transmission manufacturer

Landai

Front axle

1.5T

Rear axle

3T

Rear axle speed ratio

4.875

Brake control
system

ABS(4S4M)

Tire

185R15LT

Fuel tank capacity

60L

Basic configuration

No stable bars or plastic fuel tank, 60L, maintenance-free battery, 1 unit, 60A·h, with EP multi-mode switch, self-adjusting brake clearance arm, without transmission drive shaft, LD626MR, φ239mm diaphragm spring clutch, no tire pressure monitoring system, 1 spare tire, steel rim, multi-function steering wheel, hydraulic power steering, vacuum servo hydraulic braking, no exhaust braking, no air reservoir, front disc rear drum brakes, ABS (4S4M), 223 single-stage reduction drive axle, stamping and welding, 3 front leaf springs, 3+2 rear leaf springs, 714/760, 140 high, 50 wide, 4 vehicle frame thickness, steel rear protection, no day running lights, fog lights, door not closed warning, key forget removal alarm, manual adjustment, electric heating defrost rearview mirror, electric window lift, central locking, remote door lock, width 1730, single-row cab, no deflector cover, no deflector plate, side turn signals (door, without turning lights), electric heating, cruise control, no reverse radar, reverse buzzer, 12V battery, no cargo box accessories, HY4G15F, automatic headlights, 1505/1420, no side protection, steel rim, 3.5-inch dot matrix screen instrument, φ93×6, L185R15-6PR-QH, 6.00JJ×15-φ160-φ115, 9-inch MP5+reverse camera+Bluetooth function+no navigation, no cargo box, vehicle tools included, one-key lock car lift window (no anti-clutch), knitted seat + no shock absorption + no ventilation, front turn signal and day running light combined.

Air-conditioning

Electric AC

Number of tires

Double rear tyres 6+1pcs

Optional projects

9-inch MP5 + Rearview Camera + Bluetooth Function + No Navigation / Electric Window Up/Down, Central Locking

Container configuration parameters

3700×1850×400
