20Tons / 40 Tons / 60 Tons
13000x2500x3800 mm
2 Axles / 3 Axles
2.0 Inch / 3.5 Inch
Model |
Stake Cargo Semi Trailer |

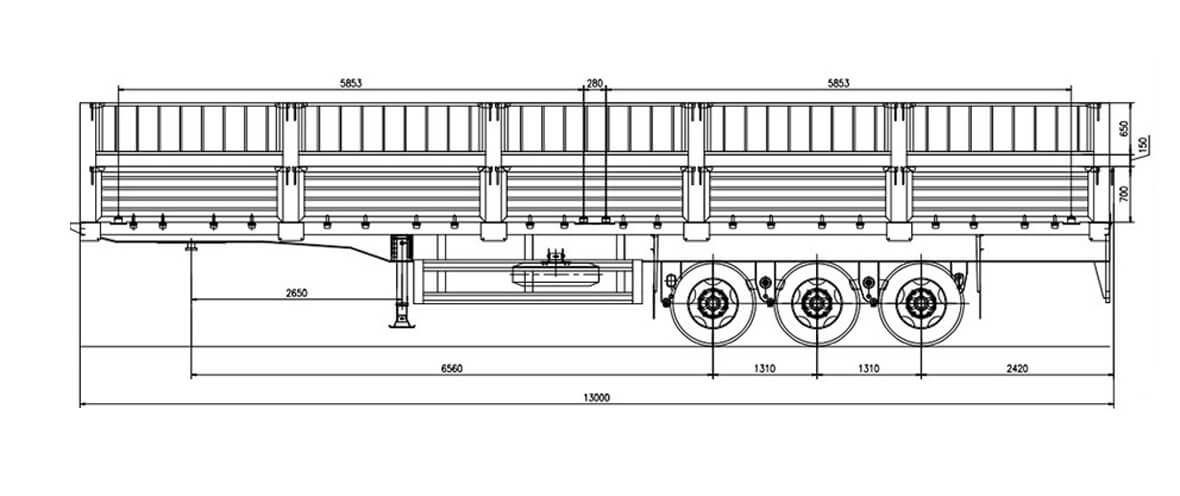

Dimension |
13000 x 2490 x 3800mm |
Curb Weight |
8.5Tons |
Loading Capacity |
≤60 Tons |
Cargo Body |
Sidewall height 800+Stake height 1600 mm; Sidewall are removable |
Platform |
3mm thick checkered plate |
Kingpin |
JOST 2.0 / 3.5 Inch |
Landing Gear |
JOST 28 Tons |
Main Beam |
Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
Side Beam |
18mm steel channel |
Suspension |
America type mechanical suspension |
Spring Leaf |
90mm x 13mm x 10 layers |
Axles |
FUWA Brand, 13Tons or 16Tons |
Tires |
12.00R20 or 315/80R22.5 |
Brake Chamber |
T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
Electrical |
24V |
Tool Box |
1000 x 500 x 500 mm |
