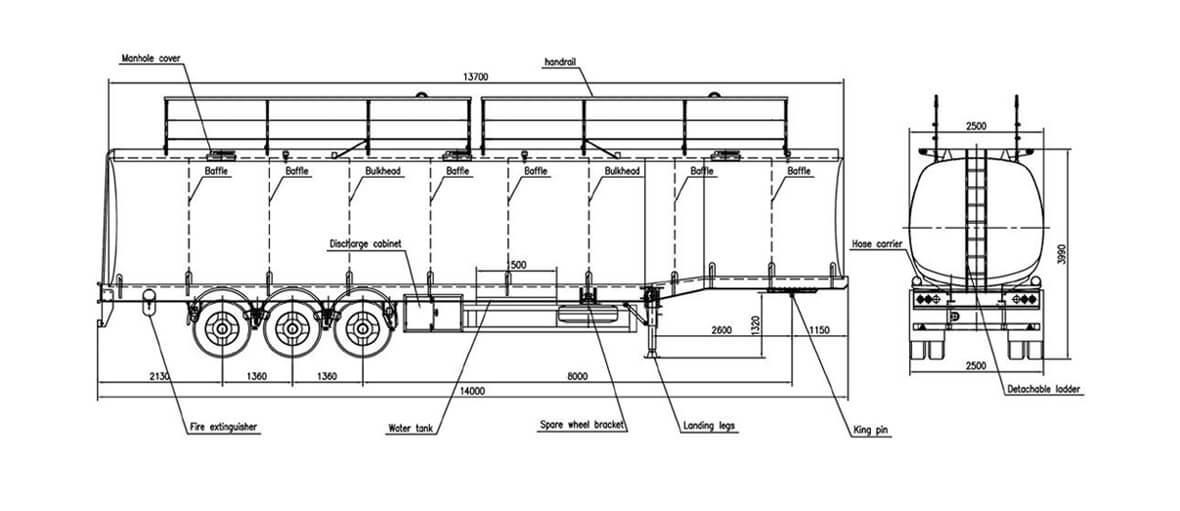

Overall Dimension:13500x2500x3900 mm
Tank Capacity:30CBM - 60CBM
Axle Number:2 Axles / 3 Axles
Kingpin Size:2.0 Inch / 3.5 Inch
Model |
Fuel Tank Semi Trailer |
Dimension |
13500 x 2500 x 3990mm |
Curb Weight |
11.5Tons |
Tank Capacity |
60,000 liters + 6% expansion approx |
Tank Body |
Tank shell thickness 5mm, front and rear cover thickness 6mm |
Compartments |
1 to 7 compartments, based on requirements |
Baffles |
5mm thick baffles designed to permit the easy flow of fuel inside the tank |
Manholes |
Each compartment is equipped with 500mm manhole cover fitted with bolts and nuts |
Discharge |
Top loading through manholes, discharged by gravity through ball valves |
Discharge Pipes |
4 rubber hose, 2units, 6 metre/each |
Kingpin |
JOST 2.0 / 3.5 Inch |
Landing Gear |
JOST 28 Tons |
Main Beam |
Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
Side Beam |
16mm steel channel |
Suspension |
America type mechanical suspension |
Spring Leaf |
90mm x 13mm x 10 layers |
Axles |
FUWA Brand, 13Tons |
Tires |
12.00R20 or 315/80R22.5 |
Brake Chamber |
T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
Electrical |
24V |
Tool Box |
1000 x 500 x 500 mm |
