Loading Capacity:60 Tons

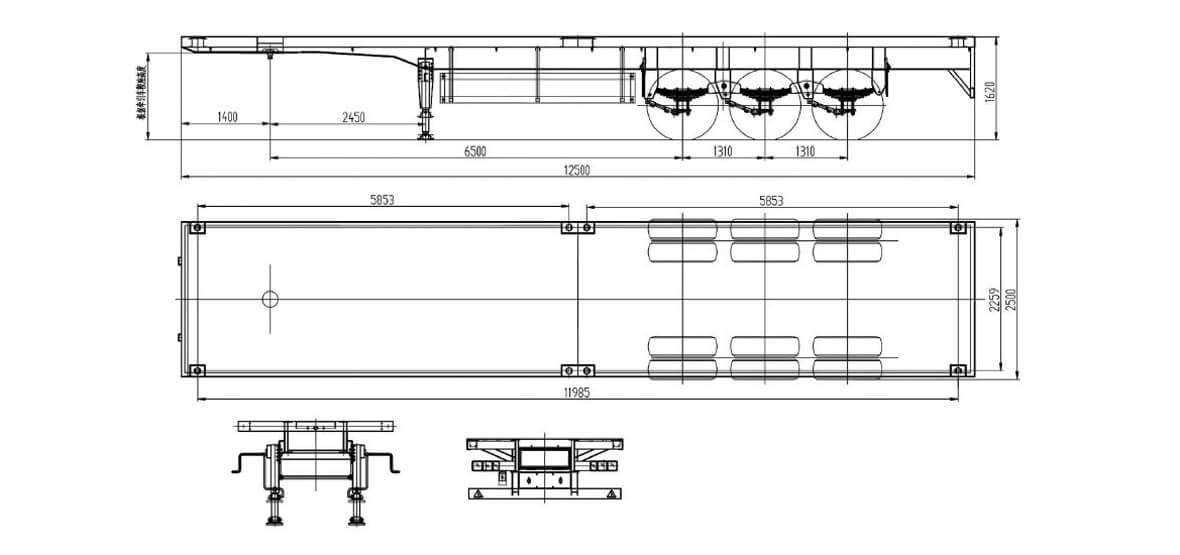

Overall Dimension:12500x2500x1620 mm
Axle Number:2 Axles / 3 Axles
Kingpin Size:2.0 Inch / 3.5 Inch
|
Model |
Flatbed Container Semi Trailer |
|
Dimension |
12500 x 2500 x 1620mm |
|
Curb Weight |
7.5Tons |
|
Loading Capacity |
60 Tons |
|
Twist Lock |
12sets, suitable to accept 1x20,2x20,1x40 container; Manual operation |
|
Platform |
3mm thick checkered plate |
|
Kingpin |
JOST 2.0 / 3.5 Inch |
|
Landing Gear |
JOST 28 Tons |
|
Main Beam |
Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
|
Side Beam |
16mm steel channel |
|
Suspension |
America type mechanical suspension |
|
Spring Leaf |
90mm x 13mm x 10 layers |
|
Axles |
FUWA Brand, 13Tons |
|
Tires |
12.00R20 or 315/80R22.5 |
|
Brake Chamber |
T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
|
Electrical |
24V |
|
Tool Box |
1000 x 500 x 500 mm |
